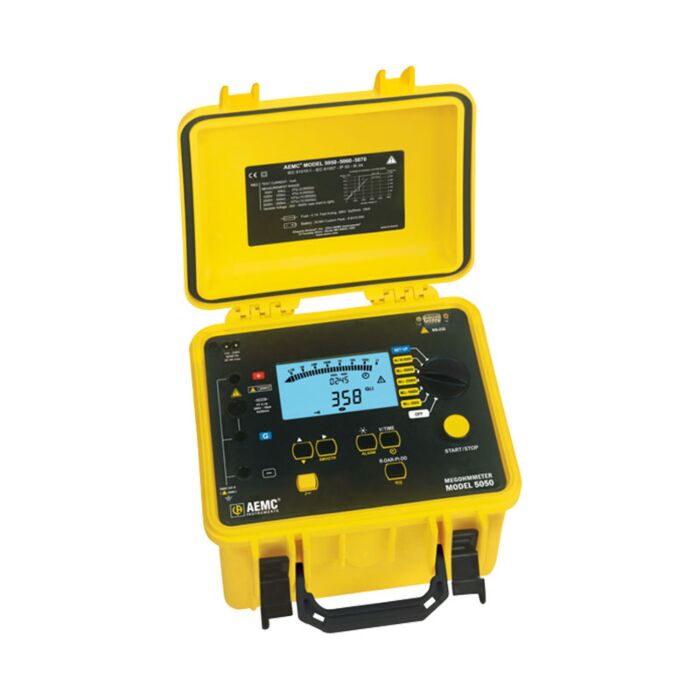

AEMC 5050

Digital Megohmmeter,Alarm Timer,500V/1000V/2500V/5000V

Order #: 2130.20

Mfg #: 2130.20

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,050.00

AEMC 5050

Digital Megohmmeter,Alarm Timer,500V/1000V/2500V/5000V

Order #: 2130.20

Mfg #: 2130.20

$3,050.00
Availability: Ships in 1-2 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

The Digital/Analog Megohmmeter Model 5050 is the latest design in 5000V insulation testers. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD). The True Megohmmeter® Model 5050 displays the test voltage, insulation resistance and the leakage current during the test. Capacitance of the sample and discharge voltage present at the test leads are displayed at the conclusion of the test. This meter is designed with the highest level of built-in safety features. The Model 5050 can be operated from an internal rechargeable battery or from AC line power.

Each Unit Includes

  • Extra large classic tool bag
  • Set of (3) 10 ft (5kV) leads (red/black/blue) with integral 5000V rated hippo clips
  • (1) guard

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

AC/DC Voltage Measurement
Range 1 to 4000V
Accuracy 1 to 99.9V: ±(1% R + 5ct)
100 to 4000V: ±(1% R + 3ct)
Resolution 1 to 99.9V: 0.1V
100 to 999V: 1V
1000 to 4000V: 2V
Frequency Range 1 to 2500V: DC or 15 to 500Hz
2501 to 4000V: DC
Input Impedance 750kΩ or 3MΩ (range dependent)
Insulation Measurement
Test Voltage / Resistance Range 500V: 30kΩ to 2TΩ
1000V: 100kΩ to 4TΩ
2500V: 100kΩ to 10TΩ
5000V: 300kΩ to 10TΩ
Measurement Accuracy 30kΩ to 39.99GΩ: ±(5% R + 3ct)
40.0GΩ 10TΩ: ±(15% R + 10ct)
Variable Voltage 40 to 5,100V
Auto Discharge Discharge time < 7s/µF from Vtest to 25V @ 5000V
Live Circuit Indicator Test inhibition if terminal voltage > 3, 10, 20% (selectable by user) of test voltage
General Features
Programmable Alarm Yes
DAR - PI - DD Yes
Ramp Mode No
Step Mode No
Capacitance Measurement 0.005 to 49.99µf
Leakage Current Measurement 0 to 3mA
Open Circuit Voltage ? 1.1 x Vn ±2V (Vn ±2% in variable mode)
Memory 4kB Memory / Stores 20 test results
Power Supply Rechargeable NIMH battery pack; external 85-256V, 50/60Hz
Battery Life ? 1500  tests at 5000V into 5MΩ with a duty cycle of 5 seconds on and 25 seconds off
Charging Time 6 hours approximately (charging allowed during tests)
Dimensions 10.63 x 9.84 x 7.09" (270 x 250 x 180mm)
Weight 9.5 lbs (4.3kg)
Altitude Operating 6562' (2000m)
Operating Temperature 14° to +131°F (-10° to +55°C) ?80% RH
Storage Temperature -40° to +158°F (-40° to +70°C) ?90% RH
IP Rating IP 53
Safety Compliance EN 61010-1, EN 61557, 1000V CAT III, Pollution Degree 2
