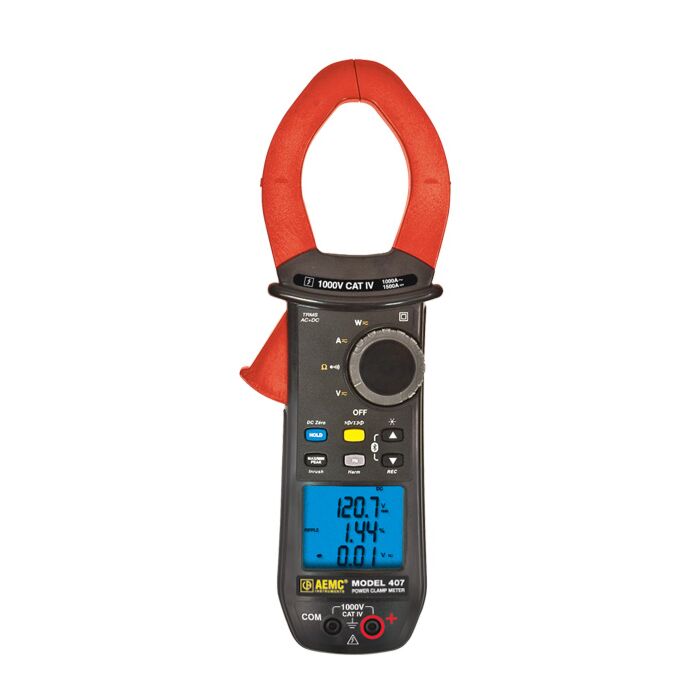

AEMC Instruments 407 Power Clamp-On Meter 1000V CAT IV Rated

Product Highlights

• 1000 V CAT IV Rated
• Jaw Opening up to 2.36"
• IP54 Rated
• 10,000 Count Blue Electroluminescent Backlit Display
• Records up to 1000 Measurements
• TRMS Measures up to 1000V AC, DC and AC+DC with Resolution to 10mV
• Measures up to 2000 Amps AC, 3000 Amps DC
• Measures Single and Three Phase Power (Real, Reactive and Apparent) up to 3MW with Resolution to 1W
• Displays Three Measurements Simultaneously
• Measures Frequency to 20kHz with 0.1Hz Resolution (Model Dependent)
• InRush Current Measurement with 1mS Capture, True InRush
• Measures Harmonics up to the 25th
• Phase Rotation Indication
• Agency Approved by UL, CSA, VDE, GS (TUV)
• RoHS Compliant
• Continuity Buzzer (>40Ohm)
• The Power Harmonic Clamp-Ons 407 & 607 Android™ Application is now available! This App can be downloaded free of charge from the Google Play store. Check it out
