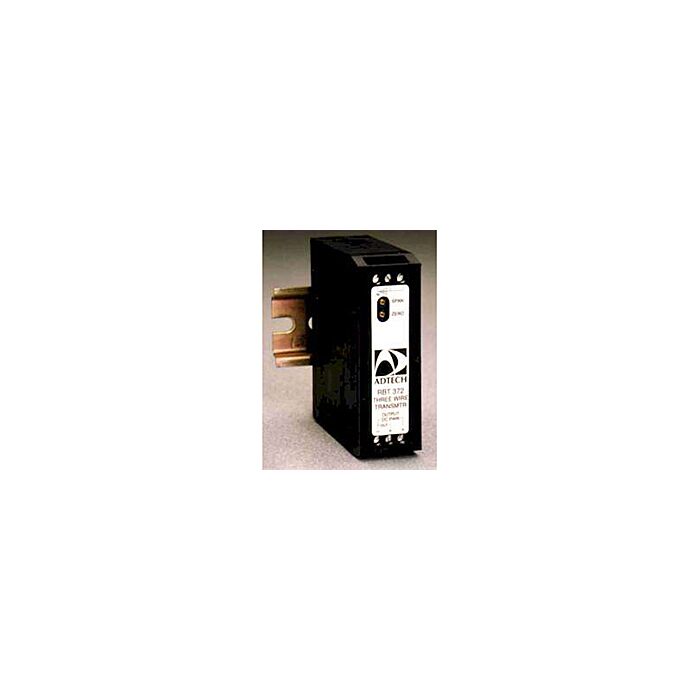

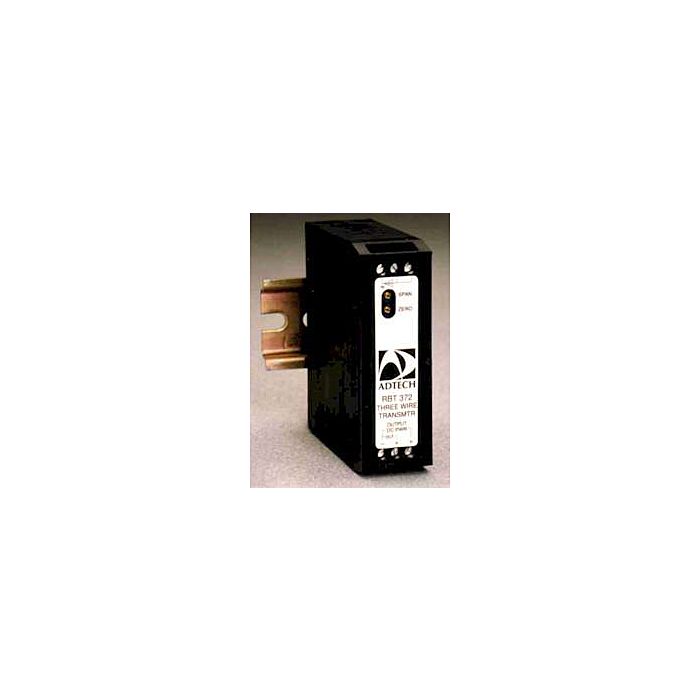

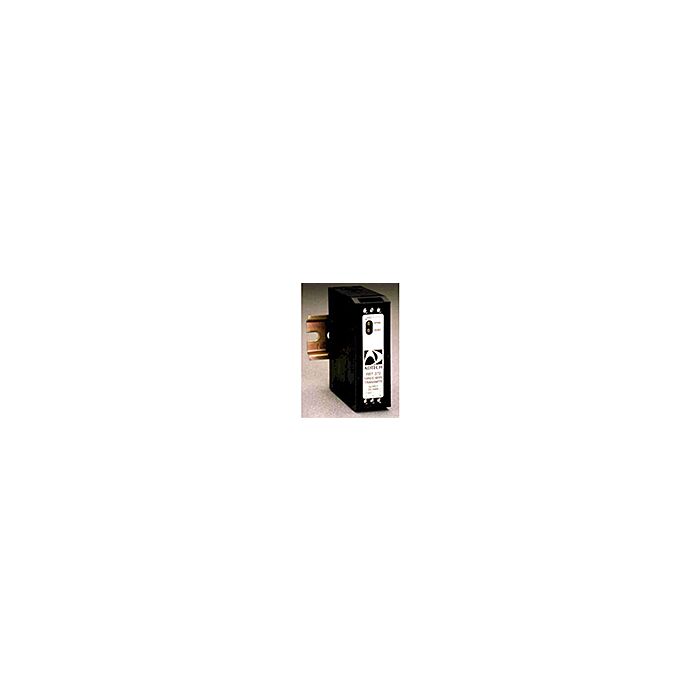

ADTECH RBT372L-H29 RTD Isolated 3W XMTR with T35 DIN "T" Rail 20" Long, Low Power

Order # RBT372L-H29 | Mfg # RBT372L-H29
$401.50
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Input Signals

  • Resistance Bulb Sensor: 2, 3, or 4 wire types 1 to 400 ohm Resistance Spans: Standard
  • Zero Suppression: Up to 100% of the major range selected in 16 divisions of the coarse zero adjustment switch.
  • Span: From 0-100% full scale switch selectable.
  • The coarse span switch adds 16 divisions to each major range.
  • Lead Compensation: 1% maximum error of differential lead resistance

Performance

  • Calibrated Accuracy: ±0.1%
  • Independent Linearity: ±0.025% maximum, ±0.01% typical
  • Conformance to RTD Curves: 0.15% max.
  • Repeatability: ±0.005% max., ±0.002% typ.
  • Span TC: ±0.008% of span max. / °C
  • Load Effect: ±0.005% zero to full load
  • Output Ripple: 10 mV P/P maximum
  • Response Time: 110 milliseconds ( 10 to 90% step response)
  • Bandwidth: (-3 db): 3.2 Hz
  • Temperature Range: -25° to 185°F (-31° to 85°C) operating; -40° to 200°F (-40° to 93°C) storage
  • Power Supply Effect: ±0.005% of span max.
  • Isolation: Input/output/case: 1000VDC, 600 VAC

Power

  • 7 to 42 VDC: 3.5 mA typical; 5 mA maximum

Ordering Options

  • H 15 D, H 25 - H 30 Mounting
