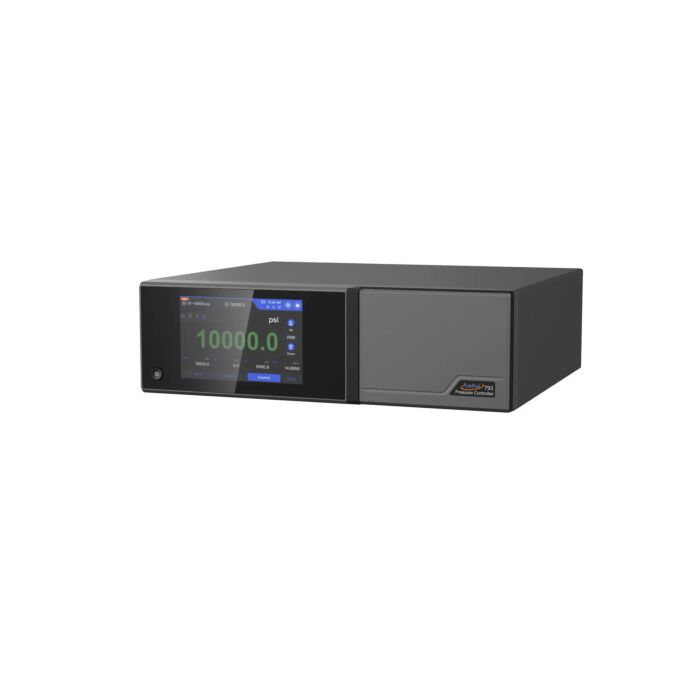

Additel ADT793W Pressure controller, 0 to 15000 psi, use with water
Order #
ADT793W
|
Mfg #
ADT793W
compare_arrows
Compare Products
Customize and add to cart
architecture
Why Calibrate?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
arrow_drop_down
Add to Cart
Add to Quote
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
compare_arrows
Compare Products
Overview
Product Highlights Dual-range pressure controller (water version) Interchangeable pressure module (sold separately) Pressure range: 0 to 15,000 psi (1,000 Bar) Accuracy of 0.02%FS, 0.01%FS, or 0.01%RD Dual range from -15 - 3000 psi (-1 - 200 Bar) to 0 - 15000 psi (0 - 1000) Bar Control stability 0.005%FS Ultra-High speed pressure generation and control No external pressure source required Control using internal or external pressure modules LAN, USB, RS232, and Ethernet communication Pressure modules are not included
Each Unit Includes
1 pc AC power cord (10A 250V)
ISO17025 accredited calibration certificate
2 pcs Green terminal plug (For switch test)
10 pcs O-ring 3.5
Specifications
Specification
ADT793
Pressure Range
0 to 15,000 psi (1,000 Bar)
Precision[1]
0.008%RD or 0.007%FS or 0.01%FS
Accuracy[2]
0.01%RD or 0.01%FS or 0.02%FS
Control Stability[3]
< 0.005%FS, typically 0.003%FS
Control Response Time[4]
< 30 Seconds
Pressure Type[5]
Gauge, absolute
Internal Pressure Control Modules
1
External Pressure Control Modules
1
Max Pressure Range of Internal Module
0~15,000 psi (0~1,000 Bar)
Min Pressure Range of Internal Module
-15~3,000 psi (-1~200 Bar)
Min Range of External Module
-15~1,000 psi (-1~70 Bar)
Range Switching Mode[6]
Fixed, auto
Pump Source Type[7]
Built-in hydraulic pump, no external pressure source required.
Control Mode
Fast, standard, custom
Maximum Overshoot
< 1%FS
Maximum Load Volume
< 10,000 psi: Max: 80 ml, 50 mL recommend
Contamination Prevention System (CPS)
Optional
Pressure Port
1/4 BSP M
Built-in Reservoir Volume
800 mL
External Reservoir Extension
Optional
Port Filter[8]
Support
Media
Diethylhexyl Sebacate or deionized water
