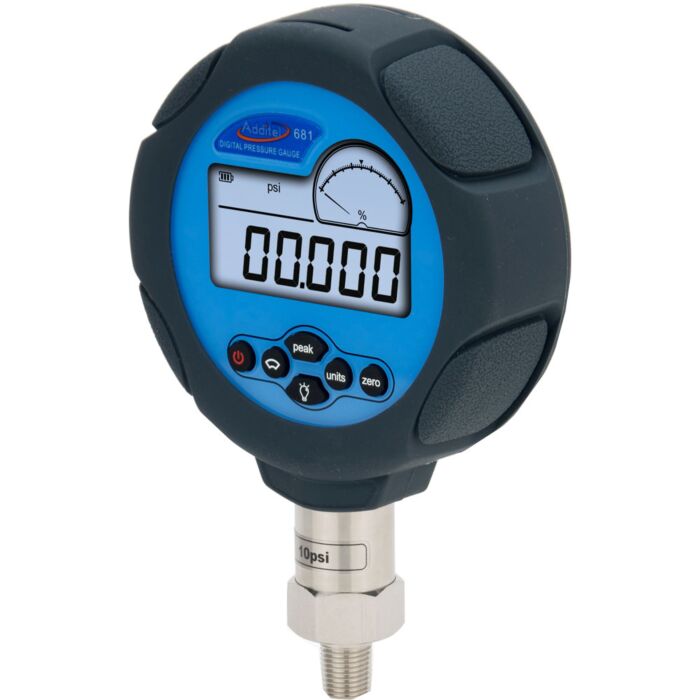

Additel ADT681-05-DP1-H2O for Rent, Digital Pressure Test Gauge, 1"H2O DP
Digital Pressure Test Gauge 1"H2O DP

Order #: ADT681-05-DP1-H2O-N-RENT1

Mfg #: ADT681-05-DP1-H2O-RENT1

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Additel ADT681-05-DP1-H2O for Rent, Digital Pressure Test Gauge, 1"H2O DP

Digital Pressure Test Gauge 1"H2O DP

Order #: ADT681-05-DP1-H2O-N-RENT1

Mfg #: ADT681-05-DP1-H2O-RENT1

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
In stock

Product Highlights

  • Pressure ranges to 60,000 psi (4,200 bar)
  • Now offering 0.05% accuracy up to 40K psi
  • 0.02%, 0.05%, 0.1%, 0.2% FS or 0.1%RD accuracy
  • % pressure indication with fan-shaped graph scale for visual reference
  • Fully temperature compensated accuracy
  • Panel mount gauges are available
  • Intrinsically safe version (681IS)
  • Data logging option
  • IP67 rated (681IS)

With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the 681 series digital pressure gauges provide an accurate, reliable, and economic solution for a wide range of pressure applications.

They are loaded with functionality and remarkably easy to use. To reach the best performance, every silicon pressure sensor in our gauges is specially aged, tested and screened before assembly. At Additel, fully temperature compensated accuracy means every sensor is pressure tested at several environmental temperatures from -10°C to 50°C. With this test data individual coefficients are generated and stored in the gauge characterizing its performance over the full temperature compensated range. And now the ADT681IS comes with an IP67 rating meaning it is dust resistant and water proof, submersible in 1 meter of water.

Designed to fit your need

Additel pressure gauges give you the widest variety of sensor choices on the market. Whether you require low inches of water measurement or very high pressure measurement, we have a gauge that will meet your need. We offer sensors which are ±1 inH2O (±2.5 mbar) to 60K psi (4,200 bar) and everything in between.

Do your applications require you to measure both positive and vacuum pressure? Our compound gauges do not compromise accuracy and provides you with the same high accuracy specification on both positive and vacuum pressures. We offer a wide variety up to 300 psi (20 bar). If you need a higher range, just contact us and we can likely customize one to meet your need. We also offer absolute pressure sensors to 5K psi (350 bar) and a full range of differential pressure sensors from ±1 inH2O (±2.5 mbar) to ±300 inH2O (±700 mbar). Are you looking for a pressure gauge to use in hazardous areas? Our certified (ATEX, CSA US & IECEx) intrinsically safe models (681IS) are designed for pressure measurement in hazardous areas.

If you need to panel mount our sensors, we offer the option (see ordering information) for a back-mounted pressure port and gauge housing designed to fit in a panel. And most recently, we've added the option to do stand-alone data logging with the 681. Now you can record more than 21,000 recor ds internal to the 681 series. Each record includes date, time, pressure and temperature readings. Download the logged data with our free Additel/Land software or you can purchase our Additel/Log II for real-time logging and data analysis. The 681 series digital pressure gauges are unmatched in performance and reliability. Best of all, they are very affordable.


  • Pressure ranges to 60,000 psi (4,200 bar)
    • 0.02% full span accuracy (681-02)
      • 0.05% full span accuracy (681-05)
      • 0.1% full span accuracy (681-10)
      • 0.2% full span accuracy (681-20)
      • 0.1% reading span accuracy (681-RD)
    • IP67 rated: Submersible in 1 meter of water(681IS)
    • Fully temperature compensated accuracy from 14°F to 122°F (-10°C to 50°C)
    • Up to eleven selectable pressure units
    • Large, easy to read display with 5-digit resolution
    • Backlit display
    • % pressure indication with fan-shaped graph scale for visual reference
    • Display flash warning when pressure over 120% of FS
    • Bottom mount or panel mount
    • ATEX certified intrinsically safe (Model 681IS)
    • NIST traceable calibration with data(included)
    • 9V battery power or AC adapter (optional)
    • Data logging to 21,843 records (includes date, time, pressure and temperature)
