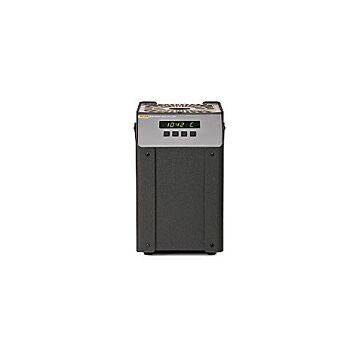

Fluke Calibration 9150-A Thermocouple Furnace, 1200C, with Insert A, 110V, 50/60Hz

Product Highlights

With a stability of ±0.5 °C, it has a temperature range to 1200 °C and a display accuracy of ±5 °C across its entire range.

With interchangeable temperature blocks, you can check thermocouples as small as 1/16 of an inch in diameter. The 9150 works with 115 or 230 VAC power.

The 9150 Thermocouple Furnace uses Fluke Calibration's own microprocessor-based controller for great stability and set-point accuracy. It has a removable well insert for versatility. It has rapid cool-down and heat-up times. And it comes with an RS-232 port for connection to a PC.

• Temperature Range: 150 °C to 1200 °C (302 °F to 2192 °F)
• Display Resolution: 0.1 ° to 999.9 ° 1 ° above 1000 °
• Stability: ±0.5 °C
• Display Accuracy: ±5 °C
• Well Diameter: 1.25" (32 mm)
• Well Depth: 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in]insulator)
• Heating Time: 35 minutes to 1200 °C
• Cooling Time: 140 minutes with block
• Well-to-Well Uniformity: ±0.5 °C to ±1.0 °C (Insert “C” at 1200 °C)
• Stabilization: 20 minutes
• Weight: 28lb (13kg)
• NIST-Traceable Calibration: Data at 150 °C, 300 °C, 450 °C, 600 °C, 800 °C, 1000° C, and 1200 °C

Each Unit Includes

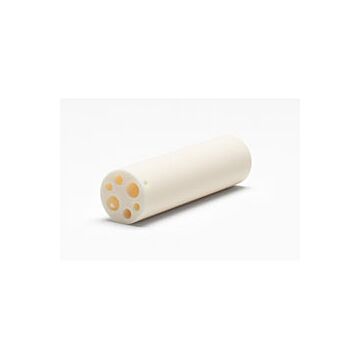

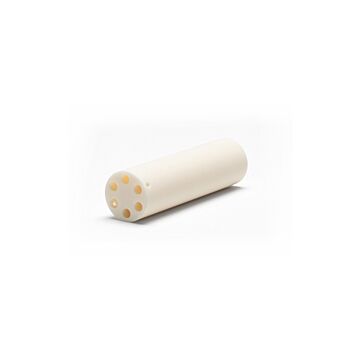

• 3150-2 Insert
• Nist Traceable Certificate
