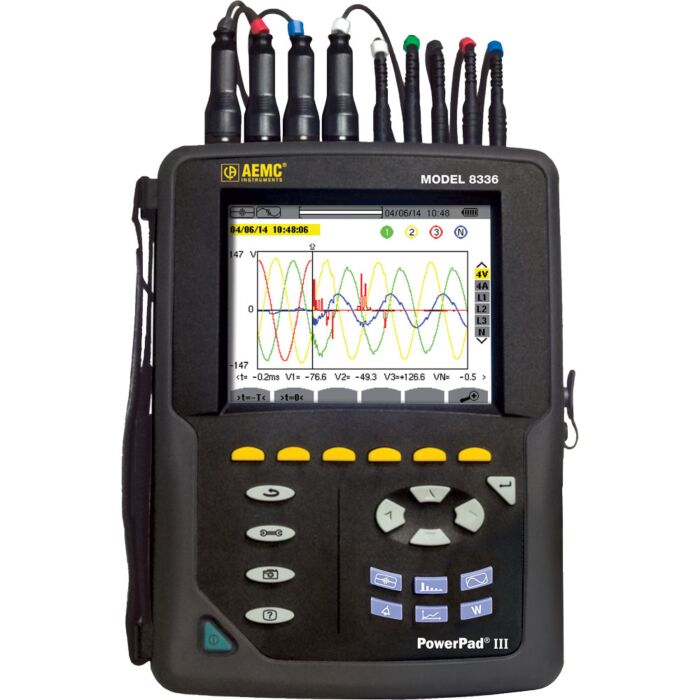

AEMC 8336
PowerPad Three-Phase Power Quality Analyzer without probes

Order #: 2136.30

Mfg #: 2136.30

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $4,987.50 Regular Price $5,250.00

AEMC 8336

PowerPad Three-Phase Power Quality Analyzer without probes

Order #: 2136.30

Mfg #: 2136.30

Special Price $4,987.50 Regular Price $5,250.00
Availability: Ships in 1-2 weeks

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Measurement of TRMS Voltages Up to 1000Vrms AC/DC for Two-, Three-, Four- or Five-Wire Systems
  • Measurement of TRMS Currents Up to 10,000Arms (Sensor Dependent)
  • Direct Measurement of Neutral Current and Voltage
  • Frequency Measurement (40 to 69Hz Systems)
  • Record and Display Trend Data as Fast as Once Per Second for One Month for Up to 25 Variables
  • Transient Detection on all V and I Inputs (Up to 210)
  • Selectable PT and CT Ratios
  • Inrush Current Measurement
  • Calculation of Crest Factors for V and A
  • Calculation of The K-Factor for Transformers
  • Calculation of Short-Term and Long-Term Flicker
  • Calculation of the Three-Phase Voltage Unbalance
  • Harmonic Measurements (Referenced to the Fundamental or RMS Value) for Voltage, Current or Power, Up to 50th Harmonic
  • Stores Up to 10,000 Alarm Events
  • Displays of Harmonic Sequencing and Direction and Calculation of Overall Harmonics
  • Real-Time Display of Phasor Diagrams Including Values and Phase Angles
  • Monitors the Average Value of any Parameter, Calculated for a Period from 1 Sec to 2 Hrs
  • Measurement of Active, Reactive and Apparent Power Per Phase and Their Respective Sum Total
  • Calculation of Power Factor, Displacement Power Factor and Tangent Factor
  • Recording, Time Stamping and Characterization of Disturbance (Swells, Sags and Interruptions, Exceedence of Power and Harmonic Thresholds)
  • 2GB Internal Trend Recording Memory
  • Additional Memory for Alarm, Transient, Inrush and Snapshot Storage
  • Measurement of Energy VAh, VARh, Wh and VADh
  • 65μs/Sample Trend Recording
  • The Max and Min RMS Measurements are Calculated Every Half-Period

Each Unit Includes

  • Dataview® Software for Configuring Data Storage
  • Real-Time Display
  • Analysis and Report Generation
