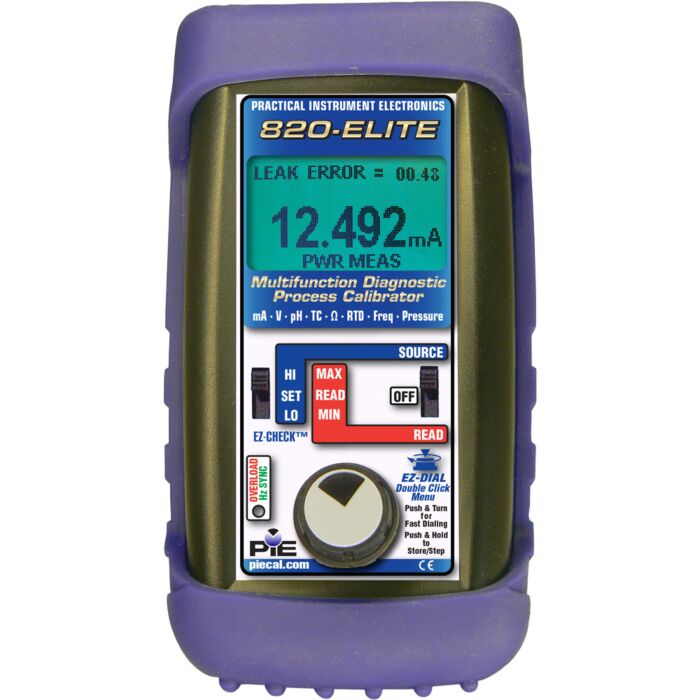

High Accuracy Multifunction Diagnostic Calibrator

Order #: PIE 820ELITE

Mfg #: PIE 820ELITE

Questions about availability or need help? Contact Us:

(800) 633-0561


High Accuracy Multifunction Diagnostic Calibrator

Order #: PIE 820ELITE

Mfg #: PIE 820ELITE

In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • Lighten up your toolbox - Compact calibrator replaces toolbox of single function devices Milliamp • Voltage • Frequency • pH • Thermocouples • RTDs • Check Continuity • Pressure
  • Technician friendly operation - Intuitive EZ-DIAL Double Click Menu makes it easier to setup than other multifunction calibrators. Similar to the single function PIE Calibrators.
  • Use it as a milliamp and voltage calibrator
    • Source 0 to 24.000 mA, 0 to 10.250 V dc, -20.000 to 99.999 mV and -500.00 to 999.99 mV
    • Read to 24.000 mA, 60.00 V dc ±99.999 mV and ±999.99 mV Simulate 2-Wire Transmitters
    • Simulate 2-Wire Transmitters
    • Power up transmitters & loops with the built-in 24 V power supply
    • Simplify HART hookups with built-in 250 Ohm resistor
  • Troubleshoot loop problems- Quickly diagnose ground fault and current leakage with patented loop diagnostic technology (US Patent 7,248,058).
  • Calibrate directly in temperature to 0.1°C &0.1 °F - Compatible with the instruments you use including all brands of smart transmitters and PLCs with 14 thermocouple & 9 RTD types.
  • Checkout flow and vibration systems - Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99 Hz, 9999.9 Hz & to 20.000 kHz.
  • Troubleshoot loop & wiring problems - ‘Beep’ out connections with the built-in continuity checker
  • Simulate pH probes into transmitters & analyzers - Source from 0.000 to 14.000 pH @ 25°C (77°F) corresponding to -414.12 to +414.12 mV
  • Measure pressure with optional pressure modules - 32 modules for gauge, differential, compound and absolute pressure
  • Easy to read - Turn on the backlight & easily see the display in dark areas of the plant.
  • Quickly set any three outputs plus automatic stepping & ramping - Easily set any value with the adjustable “DIAL” plus store any three output settings for instant recall with the EZ-CHECK™ switch. 2, 3, 5 & 11 steps automatically increment output in 100%, 50%, 25% or 10% of span. Select RAMP to smoothly increase and decrease the output. Set step/ramp time to 5, 6, 7, 8, 10, 15, 20, 25, 30 & 60 seconds.
  • Measure temperature sensors, frequency pickups, loop currents, voltage levels & pressures - Check the values of your process sensors. Instantly recall MAX and MIN values to see process variability
  • Evolutionary design - PIECAL Calibrators are designed and built by members of the same team that designed and built the calibrators manufactured by Fluke* under the Altek* label. The PIECAL 820 improves upon other brands by including a rubber boot, a backlit display with larger digits, higher accuracy and more ranges for greater flexibility.

Each Unit Includes

  • Four “AA” Alkaline batteries
  • Certificate of Calibration
  • Blue Rubber Boot
  • Evolution Hands Free Carrying Case
  • Evolution mA/V Test Leads - 1 Red & 1 Black Lead with Banana Plugs & Alligator Clips
  • Evolution RTD Wire Kit - 2 Red & 2 Black Leads with Banana Plugs & Spade Lugs
