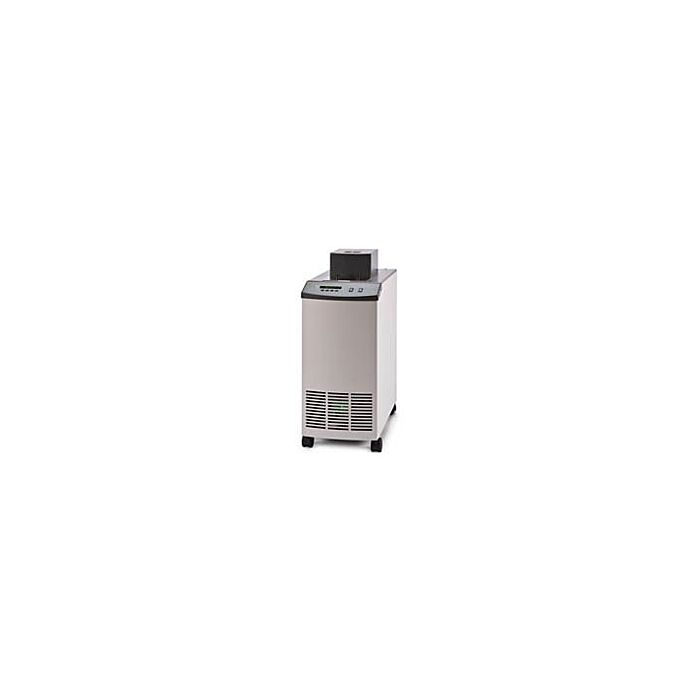

Fluke Calibration 7380-16 Compact Temperature Calibration Bath, -80C to 100C

Order # 7380-16 | Mfg # 1657712
$25,245.00
Also Available:
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • Reaches -80°C in Less Than 90 Minutes.
  • Stability and Uniformity Better than ±0.03°C
  • RS-232 Interface and Windowsâ„¢ Based Control Software are Included
  • Bath area 3.25 X 4.5 X 7" deep - accommodates several sensors at once
  • Range: –80 to 100°C (–112 to 212°F)
  • Cooling time from room temperature to –80°C is only 90 minutes and stabilization time is just 6 minutes
  • With stability better than ±0.03°C (even at extreme temperatures), the 7380 provides true metrology-level performance
  • Compact size, only 27" high
  • 115 VAC powered

Each Unit Includes

  • Each bath includes an RS-232 serial interface
  • Model 9930 Interface-it software for controlling your bath from a PC

For ultracold temperatures, the 7380 reaches –80 °C quickly and maintains a two-sigma stability of ±0.006 °C when it gets there. The 7380 is a true metrology bath, not a chiller or circulator. With uniformity to ±0.008 °C, comparison calibration of temperature devices can be performed with high precision.

Fluke Calibration doesn’t make chillers, circulators, or so-called utility baths, and utility bath manufacturers don’t make metrology baths. Use the right tools for your work and reap the best possible results. Baths from Fluke Calibration are the most stable and uniform of any you’ll find. They’ll give you results no other bath can.

Technical Resources

Fluke Calibration 7380-16 Compact Temperature Calibration Bath, -80C to 100C Accessories

checkbox-empty
Select
Fluke Calibration 5019-1L Halocarbon 0.8 Cold Bath Fluid, 1 liter (0.26 gal), -100C to 70C
checkbox-empty
Select
Fluke Calibration 5019-18.9L Halocarbon 0.8 Cold Bath Fluid, 18.9 L (5 gal), 100C to 70C
checkbox-empty
Select
Fluke Calibration 5022-18.9L Dynalene HF/LO, 18.9 liters (5 gal), 65C to 58C
checkbox-empty
Select
Fluke Calibration 5022-3.8L Dynalene HF/LO, 3.8 liters (1 gal), 65C to 58C
checkbox-empty
Select
Fluke Calibration 5023-3.8L HFE Cold Bath Fluid, Range: 75C to 100C
checkbox-empty
Select
Fluke Calibration 5019-3.8L Halocarbon Bath Fluid 0.8 (1 GAL)

All Products in Series
