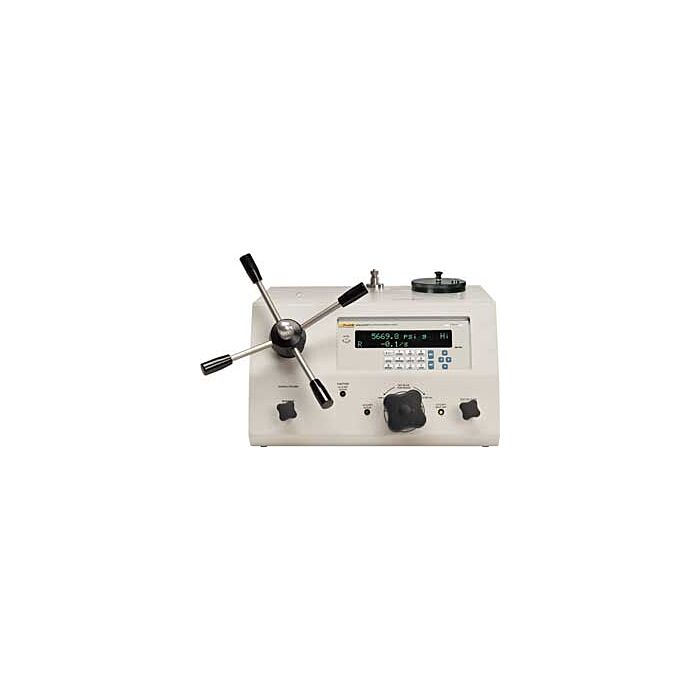

Fluke Calibration 6531-200M-B Deadweight Tester, E-DWT-H A200M, 20 to 200 Mpa, 6, 000 to 30000 PSI

Order # 6531-200M-B | Mfg # 4625452
$40,750.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • One-year measurement uncertainty is ± 0.02% of reading from 10% to 100% with one Q-RPT, and from 1% to 100% with two Q-RPTs
  • Low torque variable volume allows for pressure generation up to 200 MPa (30,000 psi) with minimal physical effort
  • Separate fine adjustment tool for maximum, superfine control resolution
  • User defined resolution and ready limits enable user to optimize performance based on DUT specifications
  • High pressure isolation valve and pressure relief valve protect the low pressure reference transducer from over pressure when high pressure reference transducer is active
  • AutoRange feature optimizes measurement and safety features for the specific range of the instrument being calibrated
  • Simple rezeroing while vented at atmospheric pressure
  • Simple, objective pressure “ready/not ready indicator with user adjustable criteria to ensure repeatable results among operators
  • Not dependent on local gravity or ambient temperature
  • Sets and reads any pressure value directly in any unit of measure, without moving weights
  • Built-in priming system to fill system with test fluid and purge unwanted air to assure smooth operation
  • Optional foot switch accessory allows hands-free data collection when running AutoTests

Each Unit Includes

  • E-DWT-H Electronic Deadweight Tester with power supply and operating manual
  • Vacuum liquid fill kit
  • Test station quick-mount fitting
  • NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
  • BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
  • Metric adapters: M20 x 1.5 and M14 x 1.5
