NOSHOK 504-FFC

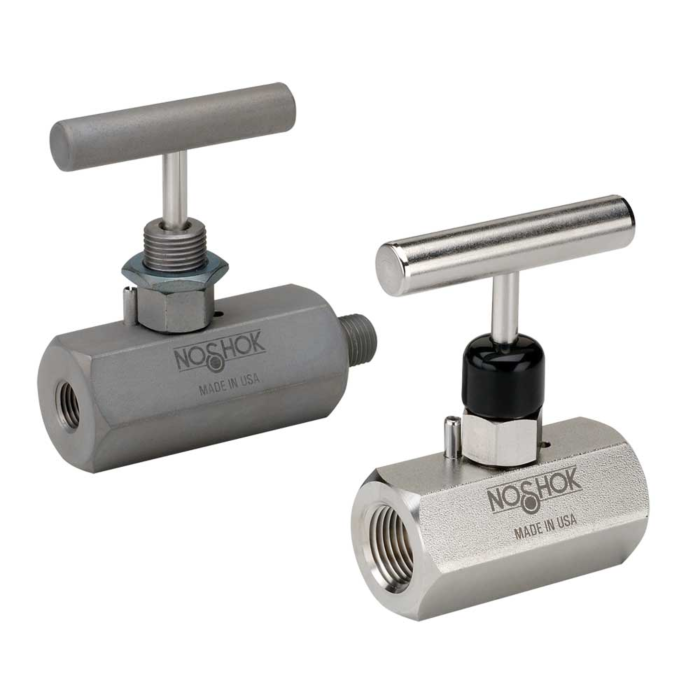

500 Series 1/2" NPTF - 1/2" NPT F Steel Soft Seat Needle Valve

Order #: 504-FFC

Mfg #: 504-FFC

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $77.99 Regular Price $81.24

NOSHOK 504-FFC

500 Series 1/2" NPTF - 1/2" NPT F Steel Soft Seat Needle Valve

Order #: 504-FFC

Mfg #: 504-FFC

Special Price $77.99 Regular Price $81.24
Availability: Ships in 3-4 weeks

Product Highlights

  • 1/2" NPT F - F Steel Soft Seat Needle Valve
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • 6,000 PSI pressure rating @ 200°F
  • Replaceable Delrin® seat and straight through porting for bidirectional, high capacity flow and easy roddable cleaning
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional (certain NPT sizes only)
  • All stems are 316 stainless steel
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust cap for bonnet and stem (non-packing)
