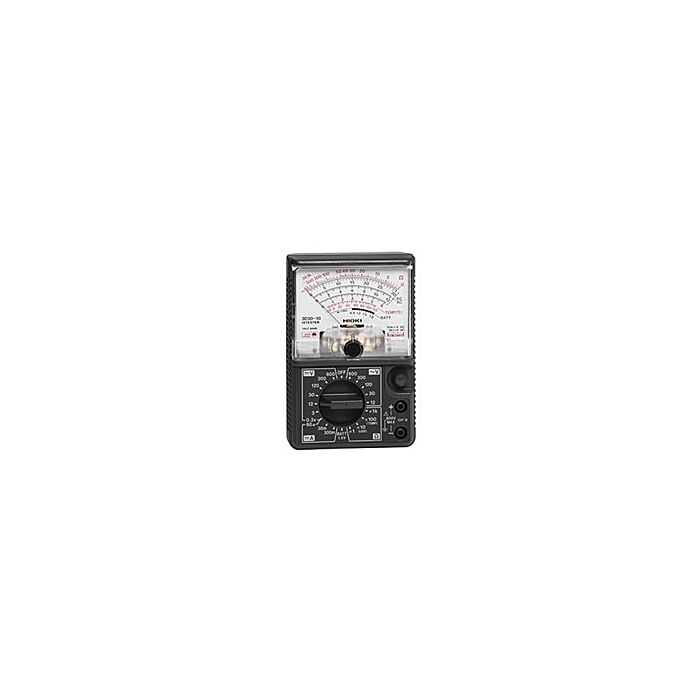

Hioki 3030-10 Analog Multimeter

Order # 3030-10 | Mfg # 3030-10
$123.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Puerto Rico only.

Overview

Product Highlights

The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.

  • Drop proof design withstands drop onto a concrete floor from a height of 1 meter
  • LED check, Battery check support
  • Included carrying case designed to hold probes
  • DC voltage range:
    • 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V)
    • Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
  • AC voltage range:
  • 12 V (9 kΩ/V) Accuracy: ±4 % f.s.
  • 30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s.
  • Average rectifier effective value, Max. rated voltage: 600 V
  • DC current range:
    • 60 µA/30 m/300 mA (300 mV internal voltage drop)
    • Accuracy: ±3 % f.s.
  • Resistance range:
    • 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k
    • Accuracy: ±3 % of scale length
  • Battery check: 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s.
  • Temperature scale: Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.
  • Power supply: For resistance measurement range, R6P (AA) ×2 batteries
  • Dimensions and mass: 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz)

    • Each Unit Includes

    • Test Lead L9207-30 ×1
    • Spare fuse ×1
    • R6P (AA) manganese batteries ×2
    • Instruction manual ×1
    • Carrying case 9390 ×1

    Technical Resources

    Hioki 3000 Series HiTester Datasheet
