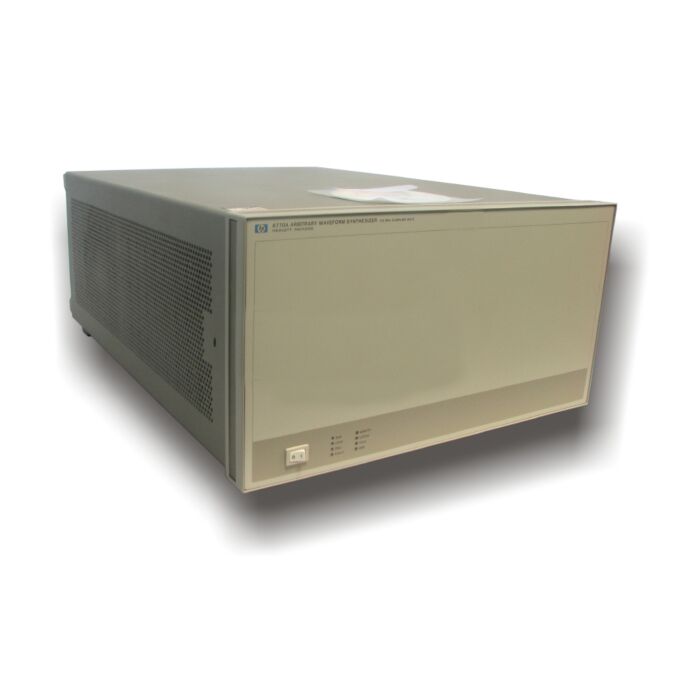

Keysight 8770A Highlights
The Keysight 8770A Arbitrary Waveform Synthesizer from Hewlett-Packard was originally sold as part of a larger system for multi-format communication signal or phase noise measurement. It was included in systems HP E2507B and HP E2508A. Waveform data is first developed using a computer. The data is then loaded into the synthesizer where the digital data is converted into an analog output. Many different waveforms can be loaded into the synthesizer™s memory at one time. Whole waveforms can be output in any order desirable.
- 8ns sample update rate, 12-bit Words (monotonic), 125MHz Internal Clock, Special "Deglitching" Circuits, 110dB RF Attenuator, 12K memory, GPIB
