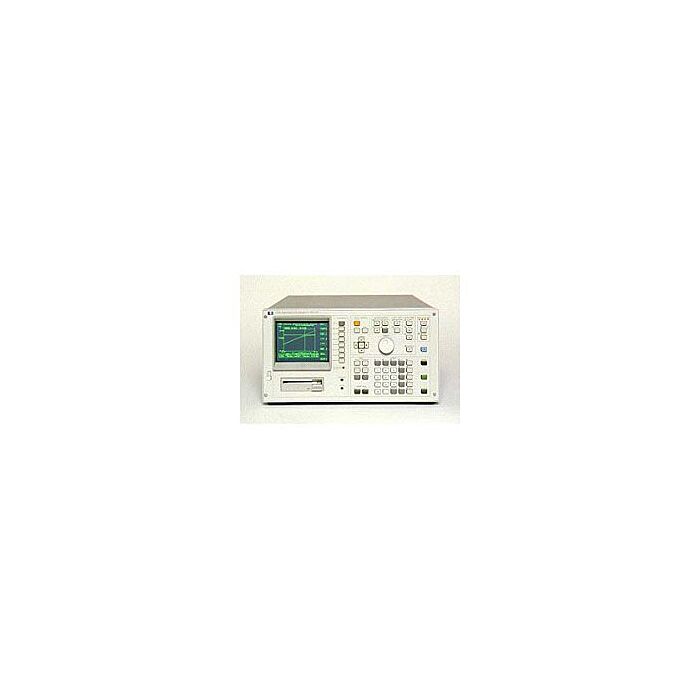

Keysight Technologies 4145A FOR RENT

Semiconductor Parameter Analyzer, 4 Built-in SMUs

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: 4145A-RENT2

Mfg Part #: 4145A

Call for Price


3 In stock

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Keysight Technologies Products

Overview :

Keysight 4145A Highlights

Designed for production line and laboratory use, the Keysight 4145A is the electronics industry's first stand-alone instrument capable of complete dc characterization of semiconductor devices and materials. It stimulates voltage and current sensitive devices, measures the resulting current and voltage responses, and displays the results in a userselectable format (graph, list, matrix or schmoo) on a built-in CRT display. An on-board programmable calculator provides real-time calculation of voltage/current dependent parameters, such as the current gain (hFE) and transconductance(gm) of transistors, which also can be displayed on the CRT. A number of powerful graphic analysis tools-marker, cursor, line function, interpolation—enhance the Keysight 4145A's basic capabilities and provide fast, accurate analysis of semiconductor devices, leading to increased production yields and improved device quality.

Four built-in stimulus/measurement units (SM Us) are the heart of the Keysight 4145A. Each SMU can be independently programmed to function as either a voltage source/current monitor or a current source/ voltage monitor. Thus, a bipolar transistor, for example, can be completely characterized in common-base, common-emitter, and common-collector configurations without changing connections- only changing the SMUs' operating modes is required. The Keysight 4145A is also equipped with two voltage sources and two voltage monitors for measurements on devices having more than four terminals, such as ICs.

The Keysight 4145A can be controlled from the front p mel, via the HP-1B (standard), or by measurement setups stored on flexible discs.

Displayed information-measurement setups, auto-sequence programs, measurement results--can be dumped directly onto an external digital printer/plotter to obtain publication quality hard copies. Also, measurement results can be sent via the HP-1B to a computer for further processing.

  • Fully automatic, high speed dc characterization of semiconductor devices and materials
  • Four programmable stimulus/measurement units capable of high resolution, wide range sourcing and sensing...I: 1 pA ~ 100 mA: 1 mV ~ 100 V
  • Built-in graphics analysis functions
    • marker and cursor provide direct numeric readouts
    • line function for automatic calculation of line gradient and X, Y axes intercept values
  • Built-in flexible disc drive for permanent storage of user programs and measurement results
  • Stimulus measurement unit (SMU): four SMUs are built into the HP / Agilent 4145A
  • Each SMU can be programmed to source voltage and monitor current, or conversely to source current and monitor voltage
  • Voltage source/current monitor and current source/voltage monitor, 6in. monochrome CRT, GPIB
