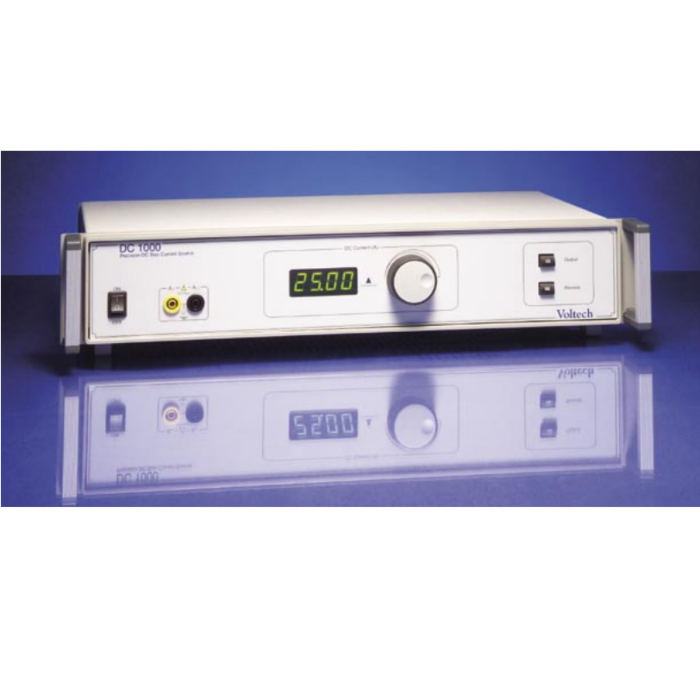

Voltech DC1000 FOR RENT

DC Bias Current Source 0 to 25A in 10mA steps, 20Hz to 3MHz

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: DC1000-RENT2

Mfg Part #: DC1000

Call for Price


1 In stock

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

Overview :

Voltech DC1000 Highlights

  • The DC1000 is used to characterize transformers and inductive components that are intended for use in high current DC power supplies and DC-to-DC converters.
  • It applies bias current to transformers and chokes for impedance testing under working conditions, providing 100% testing.
  • With minimal compensation required for high accuracy measurements the DC1000 is your ideal choice.
  • The DC1000 is also compatible with most LCR meters as well as the Voltech ATi and AT3600 automatic transformer tester.
  • Applies bias current to chokes and transformers so that inductance can be tested under working conditions. World's first bias unit stackable to 250A.
  • BREAKTHROUGH DESIGN - smaller, lighter, easy to connect and use than any other bias source.
  • Can be used stand-alone with almost any L.C.R. meter and in production testing with the AT3600 and ATi testers for transformers.
  • PC sweep software included for plotting inductance vs. DC bias current.
  • 20Hz to 3MHz Dynamic Range, Connect up to 10 units in parallel to provide up to 250A of dc bias, Accuracy, supplied current +0.5% of reading +25mA, RS-232
