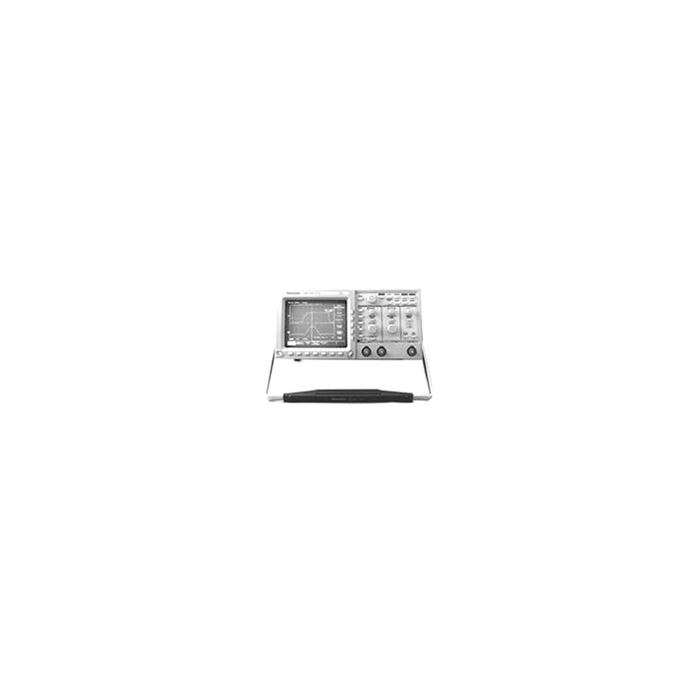

Tektronix TDS350 FOR RENT

200 MHz, 2 Channel Digital Oscilloscope, 1GSa/s

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: TDS350-RENT2

Mfg Part #: TDS350

Call for Price




Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

Overview :

Tektronix TDS350 Highlights

  • Bandwidth: 200 MHz
  • Sample Rate: 1 GS/s on each channel
  • Channels: two identical channels, each with invert function
  • Sensitivity: 2 mV to 10 V/div
  • Vertical Resolution: 8 bits (256 levels over 10.24 vertical divisions)
  • Time Base System (Main and Delayed)
  • Time/Division Range: 2.5 ns - 5 s/div
  • Record Length: 1000 sample points per channel
  • Triggering System (Main Only)
  • Triggering Types: Edge, Video Automatic Measurements
  • Option 14 (I/O Interface): Computer Interface and Hardcopy Capability
  • GPIB (IEEE-488.2) Programmability
  • RS-232 Interface Programmability
  • Video Output
  • Hardcopy Port - Centronics-type parallel or RS-232
  • Graphics Interface File Formats - Interleaf (.img), TIFF, PCX (PC Paintbrush), BMP (Microsoft Windows), and Encapsulated Postscript (EPS)
  • Printer Formats - ThinkJet, DeskJet, LaserJet, Epson (9 & 24 Pin), Seiko DPU 411/II, DPU 412 DC power provided for Seiko printers
  • 8-Bit Vertical resolution, 2mV/div to 10V/div, 1K Record length, 2% Vertical accuracy, 10ns Peak Detect Mode. Option 14: GPIB, RS-232 and Centronics Parallel Interfaces, 3P: Printer Pack
