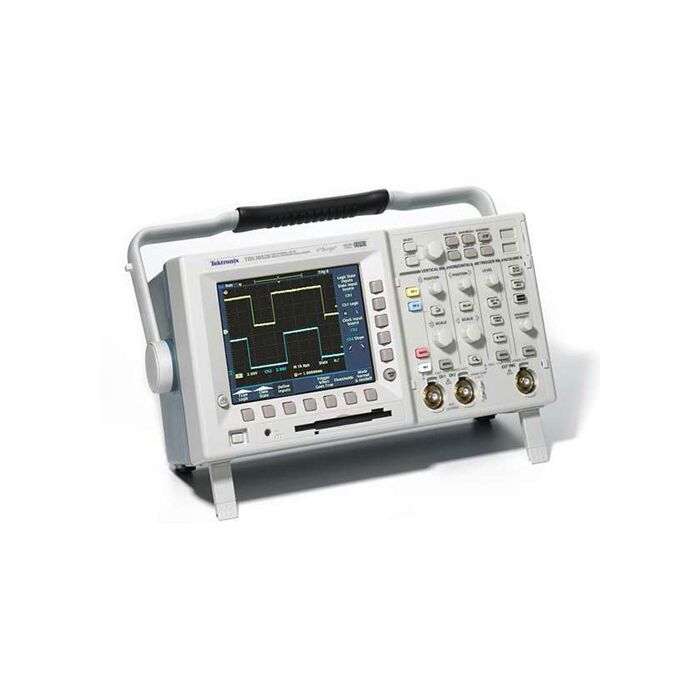

Tektronix TDS3014B FOR RENT

100 MHz, 4 Channel Digital Phosphor Oscilloscope

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: TDS3014B-RENT2

Mfg Part #: TDS3014B

$134.00 USD

Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

Overview :

Tektronix TDS3014B Highlights

The TDS3000B series builds on the award-winning TDS3000 DPO products to bring more power, more portability while still remaining affordable.

  • 100, 200, 300, 400, and 500 MHz Bandwidths
  • 2 and 4 Channel Versions
  • Sample Rates to 5 GS/s per Channel
  • Full VGA Color LCD
  • 25 Automatic Measurements
  • 9-Bit Vertical Resolution
  • Multi-language User Interface
  • QuickMenu Graphical User Interface for Easy Operation
  • Built-In Ethernet Port
  • e*Scope Web-Based Remote Control
  • WaveAlert Anomaly Detection
  • Plug-in Printer for Portable Documentation of Results
  • FFT and Advanced Pulse/Logic Triggering Modules - Now Included On All Models
  • Limit Testing for Rapid Go/No-Go Testing
  • Advanced Triggers including Glitch, Runt and Logic
  • Telecommunications Mask Testing
  • Two Video Modules for Testing and Troubleshooting
  • Centronics Port Standard on all Models for Quick, Convenient Hardcopies
  • TekProbe Level II Interface Supports Active, Differential and Current Probes for Automatic Scaling and Units
  • Built-in Floppy Disk Drive For Easy Storage and Documentation
  • Optional GPIB, RS-232 & VGA ports
  • Optional Battery Power
  • 1.25GSa/s, FFT Standard, 1mV to 10V Vertical Sensitivity(/div), 10K points Max record length, VGA LCD Color Display, Centronics-type parallel port, 10base-T LAN, RJ-45 Ethernet Port
