Starrett 1150Z-6 53170

4-6" Dial Indicator Snap Gage

These compact gages have rigid aluminum alloy frames protected from hand heat by insulating handles. They are used to gage outside diameters to an accuracy of .0001". Dimensional variations are transmitted to the dial indicator through a linear friction-free transfer mechanism totally enclosed for protection against side thrust, foreign matter and coolants. Flat gaging contacts simplify measurement close to shoulders. The top sensitive contact may be reversed to present a spherical face to the work. An adjustable backstop simplifies centering the work. 4-6" Range, in Case work.

Order #: 1150Z-6

Mfg Part #: 53170

$1,953.00 USD

Ships in 2-3 weeks

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Starrett Products

Overview :

Product Highlights

  • The contacts and backstop are 5/16" diameter hardened tool steel, precision ground and lapped fl at
  • Contacts are individually adjustable to maximum 2" range and are locked in position by tightening parallellock clamps to maintain parallelism of faces
  • Both contacts are also keyed to maintain orientation of faces regardless of adjustment
  • Plus andr minus are read directly. Dial face has a double row of graduations reading in opposite directions. Red "Minus" and black "plus" grads
  • The indicator can be rotated 360° and locked in position to read from any angle, and a fine-adjusting screw provides for zero setting the hand
  • A guard protects the dial indicator when the gage is laid down

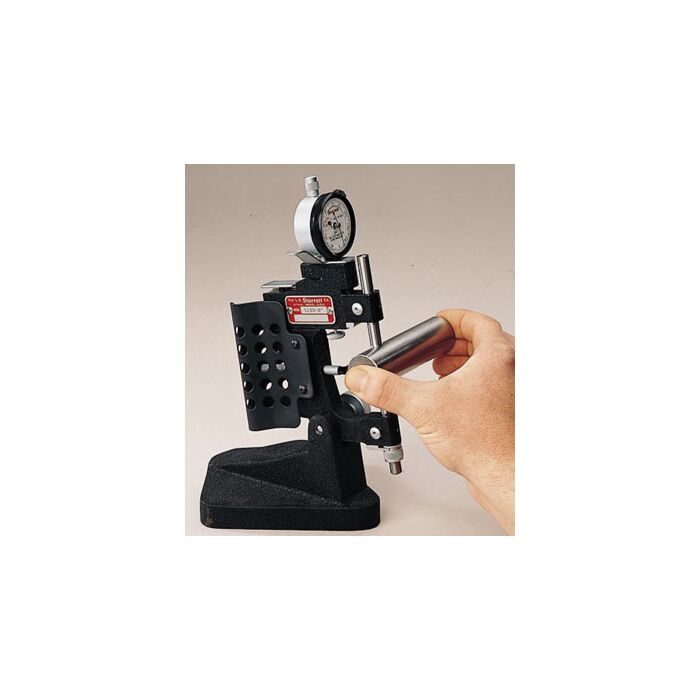

  • A bench stand is available to convert the gage to a bench comparator
  • Specifications

  • Type: Snap Gage
  • Range (in): 4 - 6"
  • Graduations (in): .0001"
  • Dial Reading: +10 / -10 .040" Range
