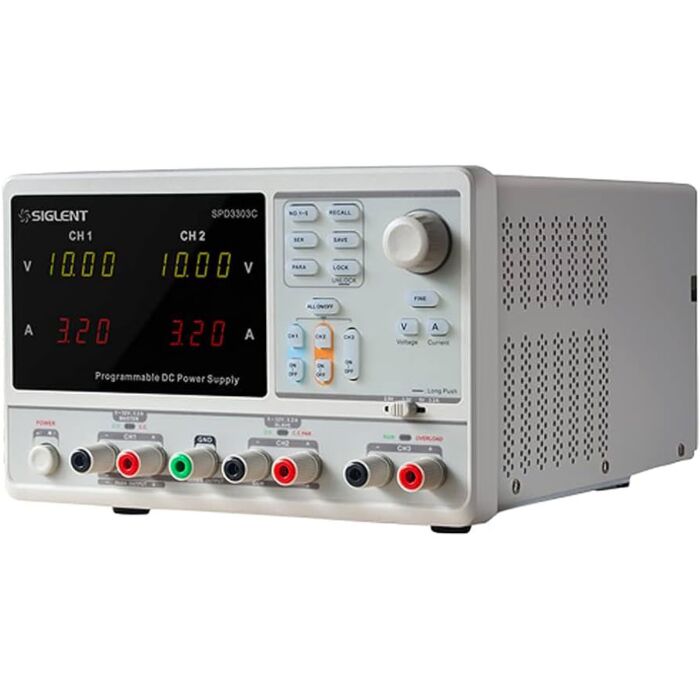

Siglent SPD3303C

Linear Triple DC Power Supply 30V/3A x 2,2.5V/3.3V/5V/3A x1

Order #: SPD3303C

Mfg Part #: SPD3303C

$289.00 USD



Usually ships in 7-10 days

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Siglent Products

Compare Products in this Series

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
Siglent SPD3303D Siglent SPD3303D

Linear Triple DC Power Supply w/Timer & Waveform Display

Order #: SPD3303D

$369.00 USD
Siglent SPD3303S Siglent SPD3303S

Linear Triple DC Power Supply High Res.w/Timer & Waveform

Order #: SPD3303S

$529.00 USD

Overview :

Product Highlights

  • The SPD3303C is a LED display screen programmable linear DC power supply that is both, lightweight, and is multi-functional. It has three independent outputs: two sets of adjustable voltage and a fixed set of selectable voltage s,2.5V, 3.3V, and 5V. In addition, it has output short-circuit and overload protection. Total power is 195W. It possesses an independent, series / parallel output mode. The SPD3300C is a high performance-to-price price product that can be used in various types of production and research environments.
  • 3 independent high precision output?30V/3A*2,2.5V/3.3V/5V/3A*1,total 195W power
  • display, min resolution: 10mV, 10mA 4 digits voltage and 3 digits current
  • Three output modes: independent, series and parallel
  • 100V/120V/220V/230V compatible design, to meet the need of different power grids
  • Smart temperature controlled fan, effectively reduce the noise
  • Save/Recall 5 group system specifications, support data storage expansion
  • Connected to PC via USB Device, support SCPI command, to meet the control and communication needs
  • CH1: output voltage 0~30V output current 0~3A
  • CH2: output voltage 0~30V output current 0~3A
  • CH3: output voltage 2.5/3.3/5.0V output current 0~3A
  • LED display 4 bits voltage display,3 bits current display
  • 10mV,10mA
  • voltage ±(0.5% of reading+2digits)
  • current ±(0.5% of reading+2digits)
  • voltage±(0.5% of reading+2digits)
  • current±(0.5% of reading+2digits)

Each Unit Includes
