SMC PTE-FCB

MCB Option, monitor voltage adapter

To test MCBs up to 250A on site.

Order #: PTE-FCB

Mfg Part #: PTE-FCB

$575.00 USD



Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All SMC Products

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
SMC PTE-FCM SMC PTE-FCM

DC Target Tester

Order #: PTE-FCM

Usually ships in 7-10 days

$475.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCE SMC PTE-FCE

External Timer Start Option (stand alone only)

Order #: PTE-FCE

Usually ships in 7-10 days

$550.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCF SMC PTE-FCF

Variable Voltage Option (AC Voltage Regulator)

Order #: PTE-FCF

Usually ships in 7-10 days

$550.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCC SMC PTE-FCC

Relay Testing Accessory Option (mounted in lid only)

Order #: PTE-FCC

Usually ships in 7-10 days

$630.00 USD
Add Items to Cart Add to Quote

SMC STT SMC STT

Smart Test Tools Relay Testing Software

Order #: STT

Usually ships in 7-10 days

$900.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCG SMC PTE-FCG

Battery Simulator

Order #: PTE-FCG

Usually ships in 7-10 days

$950.00 USD
Add Items to Cart Add to Quote

SMC PTE-SER SMC PTE-SER

Serial connector option for PTE-50-CET

Order #: PTE-SER

Usually ships in 7-10 days

$1,775.00 USD
Add Items to Cart Add to Quote

SMC PTE-30-CH SMC PTE-30-CH

Electrical Substation Maintenance Chronometer

Order #: PTE-30-CH

Usually ships in 7-10 days

$1,782.00 USD
Add Items to Cart Add to Quote

SMC IRIG-B SMC IRIG-B

Timing adapter for end to end synchronization

Order #: IRIG-B

Usually ships in 7-10 days

$2,950.00 USD
Add Items to Cart Add to Quote

SMC MENTOR 12 I AMPLIFIER SMC MENTOR 12 I AMPLIFIER

Current Amplifier Module for Mentor 12

Order #: MENTOR-12-I-AMPLIFIER

Usually ships in 7-10 days

$3,050.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

CHARACTERISTICS

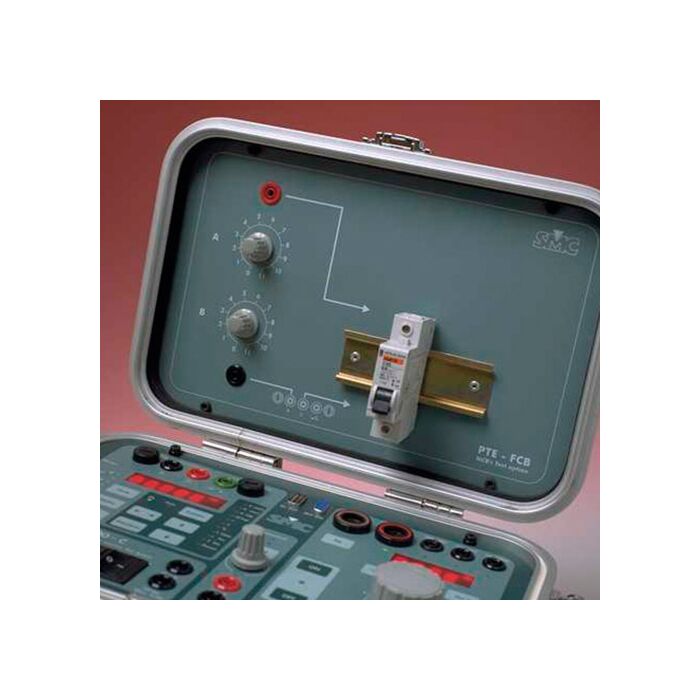

  • Test panel with DIN rail mounted in top cover.
  • Necessary to test single-break circuit breakers.
  • Also available in an independent housing (PTE-FCD)

The PTE-FCB / PTE-FCD can be used to effectively reduce the sensitivity of the monitor input. The monitor input detects the relay’s operation and stops (or starts) the chronometer when testing with the PTE-100-C, PTE-50-CE, PTE-50-CET, and all LETs excluding the LET-400 (which lacks a chronometer).

Our timer can be programmed to stop when a significant amount of voltage appears across the MONITOR section. This is the preferred method to measure trip time in a single-pole MCB (miniature circuit breaker), because, being single-pole, there is no associated ‘dry’ contact that can be used to detect the trip operation. You inject the trip current across the MCB and, when it trips, the applied voltage appears across its poles. The PTE-FCD is required because there is also a voltage drop across the closed MCB, and it may be so significant as to activate the monitor, which intempestively stops the chronometer before the MCB has tripped, thus rendering the test impossible. With the PTE-FCD, you can attenuate this ‘non-trip’ voltage until it is no longer detected by the monitor, without affecting the detection of the ‘trip voltage’. Once you have adjusted it for the particular MCB, you can proceed with the testing.

The PTE-FCD is actually an integral part of the PTE-FCB optional accessory that installs inside the PTE-100-C’s cover. However its functionality is useful also for other customers who need to test single-pole MCBs or similar tripping devices with test equipment other than the PTE-100-C (e.g. the LETs).
