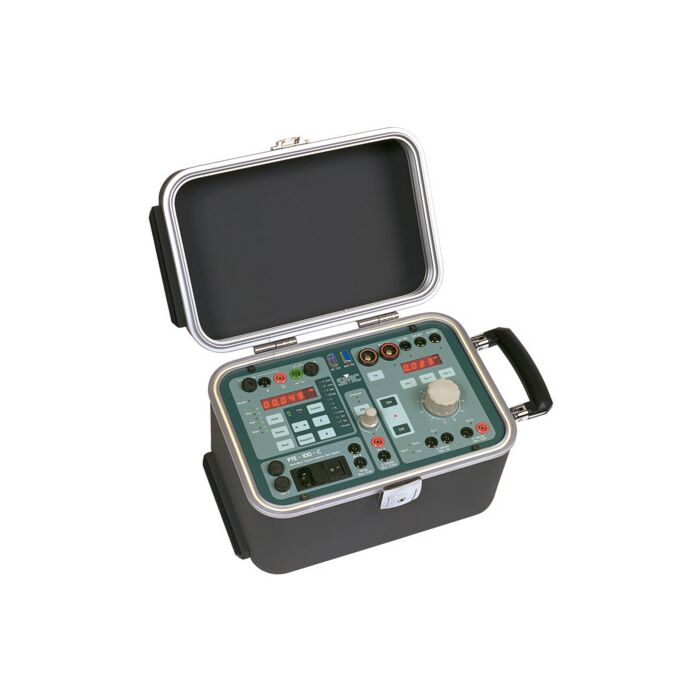

SMC PTE-100-C

Single Phase AC/DC Relay Test Set (Current/Voltage Unit)

The PTE-100-C Pro combines the basic unit PTE-100-C with the voltage supply module PTE-FCN. This is incorporated in PTE-100-C cover lid, and allows, regulated AC voltage, frequency, and phase angle.

Order #: PTE-100-C

Mfg Part #: PTE-100-C

$7,150.00 USD



Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All SMC Products

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
SMC PTE-FCM SMC PTE-FCM

DC Target Tester

Order #: PTE-FCM

Usually ships in 7-10 days

$475.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCE SMC PTE-FCE

External Timer Start Option (stand alone only)

Order #: PTE-FCE

Usually ships in 7-10 days

$550.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCF SMC PTE-FCF

Variable Voltage Option (AC Voltage Regulator)

Order #: PTE-FCF

Usually ships in 7-10 days

$550.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCB SMC PTE-FCB

MCB Option, monitor voltage adapter

Order #: PTE-FCB

Usually ships in 7-10 days

$575.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCC SMC PTE-FCC

Relay Testing Accessory Option (mounted in lid only)

Order #: PTE-FCC

Usually ships in 7-10 days

$630.00 USD
Add Items to Cart Add to Quote

SMC STT SMC STT

Smart Test Tools Relay Testing Software

Order #: STT

Usually ships in 7-10 days

$900.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCG SMC PTE-FCG

Battery Simulator

Order #: PTE-FCG

Usually ships in 7-10 days

$950.00 USD
Add Items to Cart Add to Quote

SMC PTE-SER SMC PTE-SER

Serial connector option for PTE-50-CET

Order #: PTE-SER

Usually ships in 7-10 days

$1,775.00 USD
Add Items to Cart Add to Quote

SMC PTE-30-CH SMC PTE-30-CH

Electrical Substation Maintenance Chronometer

Order #: PTE-30-CH

Usually ships in 7-10 days

$1,782.00 USD
Add Items to Cart Add to Quote

SMC IRIG-B SMC IRIG-B

Timing adapter for end to end synchronization

Order #: IRIG-B

Usually ships in 7-10 days

$2,950.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

The values which are presented in the LCD display are highly accurate, easy to read, and independent of the injection made by the PTE-100-C base unit.
The display shows continuously the phase difference between the voltage and the current injected, and can be adjusted during the test with an accuracy of 0.1º. This facilitates the test for directional relays or reclosers and synchronizing relays, etc. The protection tests based on frequency are simple and direct, due to the variable frequency between 40 and 70 Hz incorporated in the module.
If you already have a PTE-100-C unit you can easily convert this to the PTE-100-C Pro with only adding the module PTE-FCN, at a low cost, without the need to send the unit to the factory.

CHARACTERISTICS

  • 0 to 250 A variac-regulated, digitally controlled AC current output.
  • 0 to 140 VAC electronic voltage channel.
  • Voltage phase angle regulation from 0 to 360º with a resolution of 0.1º.
  • Voltage frequency regulation from 40 to 70 Hz with a resolution of 0.1 Hz.
  • Independent, stabilized and electronically protected auxiliary 0 to 250 V DC source.
  • Complete set of measurement and automation functions.
  • Programmable 1-ms resolution digital chronometer.
  • IP-65 casing, CE mark.
  • 15.5 kg
  • 200 x 300 x 200 mm.

APPLICATIONS

  • Single-phase testing of relays:
  • Definite and inverse time over current.
  • Min/max AC / DC voltage.
  • Directional over current.
  • Frequency.
  • Distance.
  • Synchronizing.
  • Volts / Hz
  • Directional power.
  • Loss of Field.
  • Reverse Phase.
  • Negative sequence over current.
  • Reverse phase / voltage.
  • Thermal.
  • Power factor.
  • Overvoltage.
  • Earth detection.
  • Phase angle, Out of Step.
  • AC / DC reclosing.
  • Directional voltage and power.
  • Moulded Case Breakers (MCB, MCCB) testing.
  • CT Knee-point analysis and many other accurate electrical measurements.
  • Three-phase testing when combined with other PTE-range equipment.
