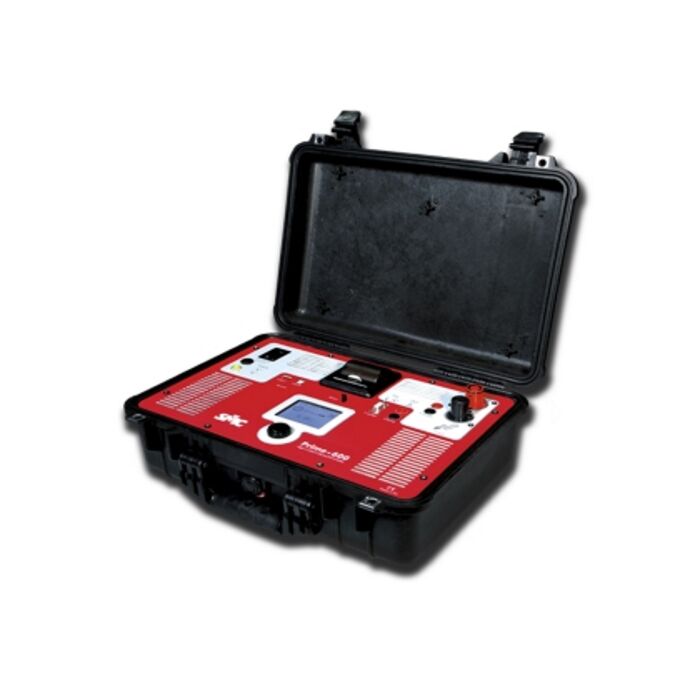

SMC PRIME 600

MicroOhmmeter

It is the only micro ohmmeter in the market that integrates both the contact resistance and the dynamic resistance measurement (DRM) for cost-efficient condition evaluation of contacts in SF6 and vacuum type circuit breakers; PRIME is a high current micro-ohmmeter that provides true pure DC with smart control up to 600 A, a wide measurement range with high power, dual ground testing process, thermal printer, touch display, pre-defined test modes and automatic reporting.

Order #: PRIME-600

Mfg Part #: PRIME 600

$7,645.00 USD



Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All SMC Products

Compare Products in this Series

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
SMC PME-500-TR TCP SMC PME-500-TR TCP

Thermal Chart Paper (200 foot roll)

Order #: PME-500-TR-TCP

Usually ships in 7-10 days

$15.00 USD
Add Items to Cart Add to Quote

SMC PME-TMP-SNS3 SMC PME-TMP-SNS3

Temperature probe - 3-meter cable

Order #: PME-TMP-SNS3

Usually ships in 7-10 days

$1,270.00 USD
Add Items to Cart Add to Quote

SMC PME-TMP-SNS10 SMC PME-TMP-SNS10

Temperature probe - 10-meter cable

Order #: PME-TMP-SNS10

Usually ships in 7-10 days

$1,450.00 USD
Add Items to Cart Add to Quote

SMC PME-20-PH SMC PME-20-PH

Phase Angle Meter

Order #: PME-20-PH

Usually ships in 7-10 days

$2,550.00 USD
Add Items to Cart Add to Quote

SMC PME-TCE SMC PME-TCE

Travel Analysis Option

Order #: PME-TCE

Usually ships in 7-10 days

$3,150.00 USD
Add Items to Cart Add to Quote

SMC PME-500-TR SMC PME-500-TR

High Voltage Circuit Breaker Analyzer ( 5 Meter Leads)

Order #: PME-500-TR

Usually ships in 7-10 days

$9,435.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

The use of micro ohmmeters with 4-wire measurement method is a common procedure in the power field for low resistance measurements (in micro ohms and milliohms range), with the purpose of detecting and preventing future problems; it is performed in breakers, switchgear, busbars joints, switching contacts and critical connections, as well as also used in any other metallic connection checks of other installations in different industries.

The PRIME 600 is a micro ohmmeter that integrates both the contact resistance and the dynamic resistance measurement (DRM) as stand-alone unit; the dynamic resistance test, which is essential in analyzing the wear of the arcing contacts in SF6 and vacuum breakers, is a function never found before in micro-ohmmeters, so that with the PRIME is not required to combine several equipment for the complete static and dynamic resistance analysis, becoming an ideal option for circuit breaker testing.

The PRIME plot the DRM time/resistant curve that describes the resistance changes on the measured spot throughout a few milliseconds, for detecting contact anomalies and wear; the analysis of the relevant characteristics and values of this curve is an effective diagnostic way of the internal condition of the breaker contacts, and reveals potential problems related to the arcing contact condition without having to open the chamber.

The nature and dimensions of the electrical installations impose the need of accurate, high current injection, with the required high power, for obtaining reliable measurements throughout the entire setup; the injection range of the PRIME reach up to 600 A with pure DC generation (no ripple), which eliminates resistance distortions in elements with significant inductive characteristic, for example when checking a whole busbar and the resistance measurement could be affected by the nature of the DC injected; this high current micro ohmmeter features the higher power on the market (6 Vdc at 600 Adc) which enables for longer leads, less connections problems, and more accurate measurements.

The PRIME microohmeter provides an easy and intuitive use with touch screen and several pre-defined test modes, reducing the testing time; at the beginning of any test, the equipment checks for proper connectivity of the system, warning of possible connection mistakes; for increased safety, the Prime 600 demagnetizes the connected load at the end of each measurement.

The micro ohmmeter includes the easy generation of test reports, with direct printing on field through the built-in thermal printer, or saved to USB or PC with the PrimeSync software for grouping tests in a nice report exportable to office formats in PC.

For higher accuracy and being possible to compare the results measured at determined temperature with the standard values, the option of a temperature sensor, which transmits the temperature of the tested spot to the Prime 600, allows for results normalization in temperature.

An optional dual ground clamp accessory eliminates the need to remove the ground protection and speeds up the measurement process with a dual ground test method.

The high quality of the robust IP67 protective case also ensures the safe transport and use on harsh environments.

CHARACTERISTICS

  • Dynamic Resistance Measurement
  • Dual ground operation
  • Automatic de-magnetization function
  • Alert on connection mistakes
  • Touch-sensitive graphical display
  • Pre-defined test modes
  • Built-in thermal printer
  • Removable USB storage
  • PC download and reporting
  • Sturdy, water proof ABS casing, IP67
  • Temperature normalization

APPLICATIONS

  • Circuit breaker contact resistance measurement according to ANSI C37.09-1979 (5.14), IEC 1208 and IEC 694 (6.4) standards.
  • Quick, efficient condition evaluation of arc contacts in SF6 and vacuum insulated circuit breakers.
  • Assessment of connection quality in cable attachments, busbars and any conductive joint in electrical installations.
  • Winding resistance measurement in transformers.
  • Continuity in switches, earth connections, welding points, fuses, etc.
