SMC PME-20-PH

Phase Angle Meter

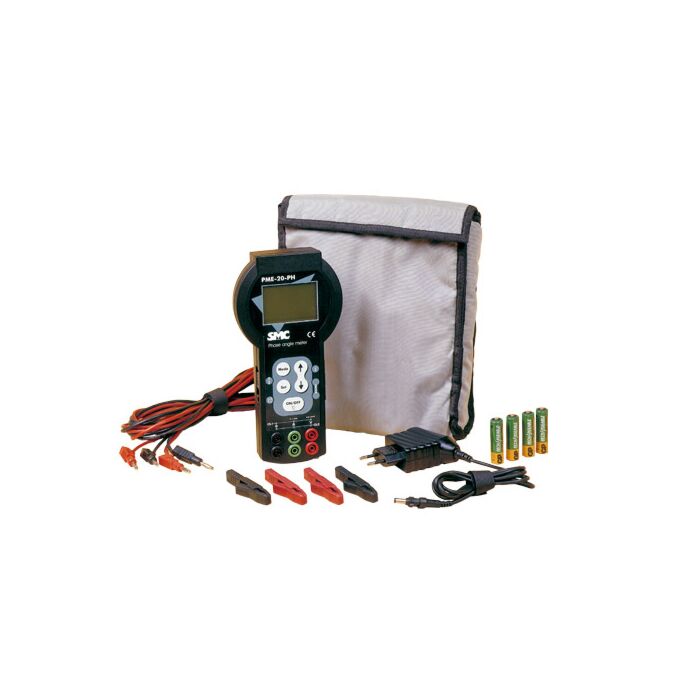

The PME-20-PH is an instrument designed mainly as a phase angle meter, although other parameters, such as Frequency and Power Factor can be measured. The instrument has an analogic scale that enables it to be used as a synchroscope.

Order #: PME-20-PH

Mfg Part #: PME-20-PH

$2,550.00 USD



Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All SMC Products

Compare Products in this Series

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
SMC PME-500-TR TCP SMC PME-500-TR TCP

Thermal Chart Paper (200 foot roll)

Order #: PME-500-TR-TCP

Usually ships in 7-10 days

$15.00 USD
Add Items to Cart Add to Quote

SMC PME-TMP-SNS3 SMC PME-TMP-SNS3

Temperature probe - 3-meter cable

Order #: PME-TMP-SNS3

Usually ships in 7-10 days

$1,270.00 USD
Add Items to Cart Add to Quote

SMC PME-TMP-SNS10 SMC PME-TMP-SNS10

Temperature probe - 10-meter cable

Order #: PME-TMP-SNS10

Usually ships in 7-10 days

$1,450.00 USD
Add Items to Cart Add to Quote

SMC PME-TCE SMC PME-TCE

Travel Analysis Option

Order #: PME-TCE

Usually ships in 7-10 days

$3,150.00 USD
Add Items to Cart Add to Quote

SMC PRIME 600 SMC PRIME 600

MicroOhmmeter

Order #: PRIME-600

Usually ships in 7-10 days

$7,645.00 USD
Add Items to Cart Add to Quote

SMC PME-500-TR SMC PME-500-TR

High Voltage Circuit Breaker Analyzer ( 5 Meter Leads)

Order #: PME-500-TR

Usually ships in 7-10 days

$9,435.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

The instrument has two inputs, which are galvanically isolated: a voltage input up to 500 V RMS and current input up to 25 A RMS, that can be connected directly into the input taps. The phase angle measurement has a resolution 0.1º, regardless of the input values.

Inputs to 750V and 1000 A can be made using optional accessories. The instrument is supplied with 4 rechargeable AA size batteries, which provides a 6-hour autonomy.

The display is a Graphic LCD, with a back light that can be adjusted to suit the ambient conditions. The measurement results are presented simultaneously with the necessary complimentary data, and in the case of the Power Factor measurement, the instrument indicates the phase angle quadrant.

CHARACTERISTICS

  • Phase angle accuracy: +/- 0.1°
  • Voltage input: 0.2 to 500 V RMS direct.
  • Current input: 0.1 to 25 A RMS direct.
  • Selected Measurement Modes:
  • Phase Angle displayed as +/-180°
  • Phase Angle displayed as 0-360°
  • Frequency: 40 to 500 Hz
  • Power Factor: 0 to +/-1, indicates phase angle quadrant.
  • Use as a Synchroscope.
  • Battery Powered.
  • Reduced size and weight.

APPLICATIONS

  • Measures the phase angle between two Voltages, two Currents, or Voltage-Current.
  • Measures Frequency.
  • Measures Power Factor.
  • Synchroscope.
  • In general, for Maintenance in Transmission and Distribution Systems, all well as industrial or commercial centers.
