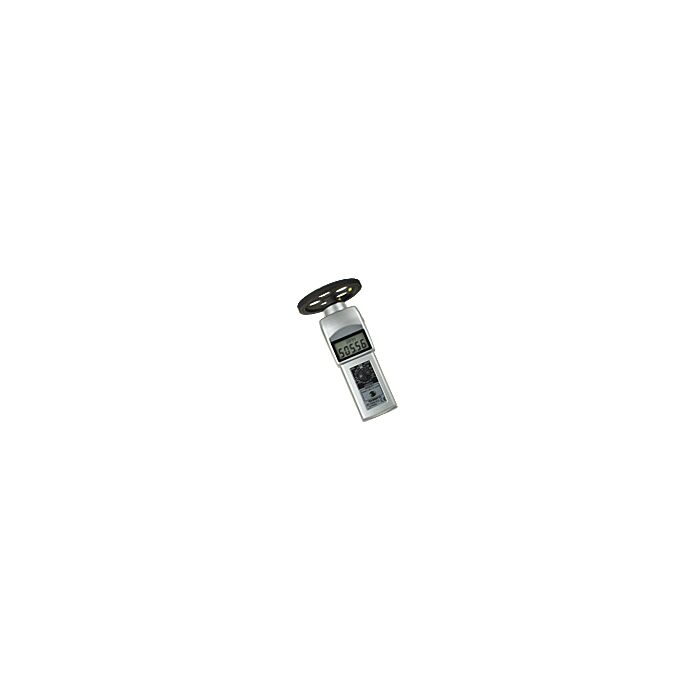

Shimpo DT-105A-S12
Handheld Tachometer w/ 12" Wheel

Order #: 7236FST-12

Mfg #: DT-105A-S12

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $305.50 Regular Price $325.00

Shimpo DT-105A-S12

Handheld Tachometer w/ 12" Wheel

Order #: 7236FST-12

Mfg #: DT-105A-S12

Special Price $305.50 Regular Price $325.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • Measuring Range: 0.10 - 25,000 RPM with floating decimal
  • Accuracy: ±0.06 RPM : 0.10 - 999.9 RPM ±0.6 RPM : 1,000.0 - 9,999.9 RPM ±0.006 % of reading ±1 digit (or 2 RPM max.) : 10,000 - 25,000 RPM
  • Display: 5 digit 0.47" (12 mm) high LCD
  • Measuring Units: Revolutions : RPH,RPM Feet : FPH,FPM Miles : MPH Yards : YPH,YPM Inches : IPM Meters : mPH,mPM Length : m, cm, inches, feet, yards Total Revolutions : REV
  • Memory: 13 readings are stored in memory and retained for 5 minutes (last, max., min. and 10 extra measurements)
  • Display Update Time: 1 second (typical)
  • Detection Optical: coupler, 60 pulses/rev.
  • System Control: Single-chip C-MOS microprocessor
  • Over Range Indicator: Flashing numerals
  • Voltage Requirement: 2 AA 1.5 V batteries
  • Low Battery Indicator: Flashing ”LO BAT” display Auto Power Shut-Off: Yes
  • Battery Life: 65 hrs approx.
  • Operating Temperature Range: 32° - 113° F ( 0 - 45° C )
  • Decimal Point: Floating
  • Construction: Die-cast aluminum housing
  • Weight: 0.9 lb (400 g)
  • Dimensions: 7.2" L x 2.4" W x 1.8" H (182.5 mm x 60 mm x 46 mm)
  • Warranty: 1 year

Each Unit Includes

  • 2 cone adapters
  • 1 funnel adapter
  • 1 3-1/2" extension shaft
  • NIST certificate
  • Carrying case
  • 1 master wheel (12" cir.)
