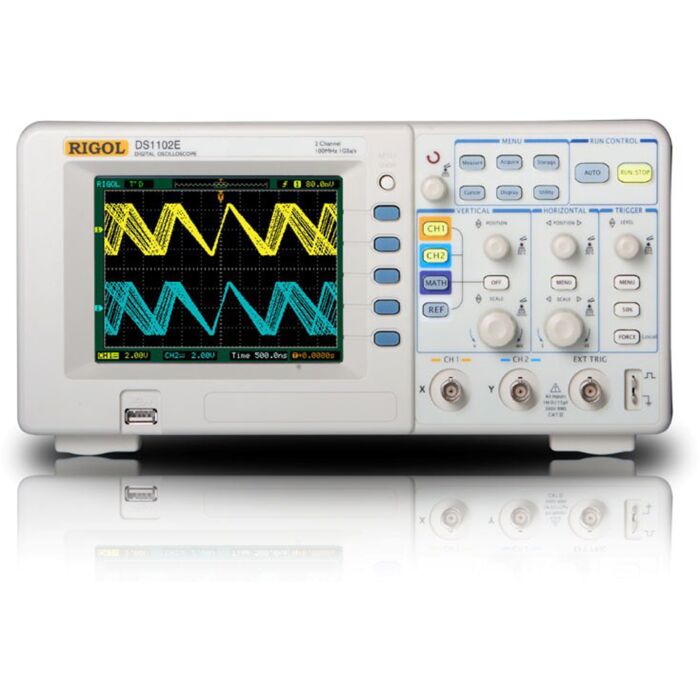

Rigol DS1000E Digital Oscilloscope
Order #: Rigol DS1000E Series Digital Oscilloscopes
The DS1000E Series Digital Oscilloscopes set a new standard for technology and capability. With features including 1 million points of deep memory, FFTs, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity the DS1000E is the new bench standard.
Why Buy the Rigol DS1000E Series from Transcat? Calibration. Selection. Price.
Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!
DS1000E series are kinds of economical digital oscilloscope with high-performance. They are designed with dual channels and 1 external trigger channel. The front panel of the DS1000E series digital oscilloscopes are clear, direct viewing and easy to use, which consistent with the traditional instrument use fully. To speed up the adjustment and measurement, please press AUTO button to get suitable waveform display and settings. Besides, 1GSa/s maximum real-time sample rate, 25GSa/s maximum equivalent sample rate and the powerful trigger and analyzer functions enable users view or capture the waveform more detailed and faster.
DS1000E Main Features
- Dual analog channels, 1GSa/s maximum real-time sample rate and 25GSa/s maximum equivalent sample rate, Bandwidth of per channel: 100MHz (DS1102E) 50MHz (DS1052E)
- 5.6 inch and 64 k TFT LCD
- Unique adjustable trigger sensitivity enables to meet different demands
- Enable to measure 22 types of wave parameters and track measurements via cursor automatically
- Unique waveform record and replay function
- Fine delayed scan function
- Built-in FFT function, hold practical digital filters
- Provide 4 types of digital filters: LPF, HPF, BPF, BRF
- Pass/Fail detection function enables to output testing results
- Math operations available to multiple waves
- Powerful PC application software UltraScope
- Standard configuration interface: USB Device, USB Host ,RS-232 and support USB storage device storage and PictBridge print standards
- The new function “Special Mode” can meet the needs of industrial production
- Support for remote command control
- Built-in help menu enables information getting more convenient
- Multiple Language User Interface, support Chinese & English input
- Can store files into USB storage device or the internal memory
- Waveform intensity can be adjusted
- To display a signal automatically by AUTO
- Pop-up menu makes it easy to read and use
| Model | DS1102E | DS1052E | ||
|---|---|---|---|---|
| Bandwidth | 100 MHz | 50 MHz | ||
| Analog Channels | 2 | |||
| Vertical Sensitivity | 2 mV/div - 10V/div | |||
| Real-time Sample Rate | 1 GSa/s（each channel），500 MSa/s（dual channels) | |||
| Equivalent Sample Rate | 25 GSa/s | 10 GSa/s | ||
| Memory Depth | mode | capture rate | common | long memory |
| one channel | 1 GSa/s | 16 kpts | N/A | |
| 500 MSa/s | 16 kpts16 1 | 1 Mpts | ||
| dual channels |
500 MSa/s
250 MSa/s
or less |
8 kpts
8 kpts
|
N.A.
512 kpts
|
|
| Standard Interface |
USB Host & Device, RS-232, P/F Out
|
|||
| Vertical Resolution | 8 bits | |||
| Math | ＋, －, ×, FFT | |||
| Max Input Voltage | All inputs 1MΩ‖15pF 300 V RMS CATⅠ | |||
| Cursor Measurements | Manual, Track and Auto Measure modes | |||
Product Highlights
- 2 Analog channels plus external trigger
- 1 Million point deep memory
- 1 GSa/sec max sample rate
- 5.7” TFT QVGA (320X240) with 64K color LCD backlit display
- Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate
Each Unit Includes
- Packing Kit
- CD
- Calibration Certificate
- Power Cord
- USB Cable
- Probes - 2
