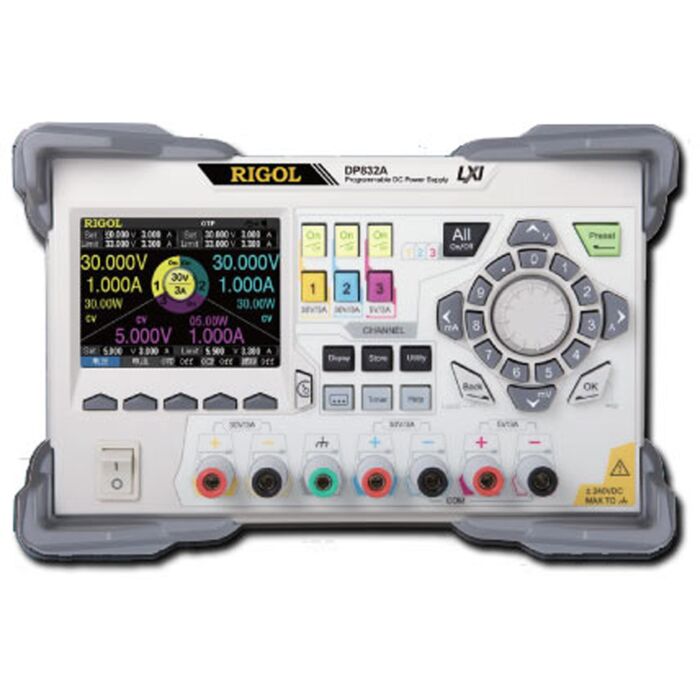

Rigol DP800 Series Power Supply

The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP800 Series is a family of linear power supplies systems with 1, 2, or 3 outputs and up to 200 Watts in total. With one channel isolated users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features in the advanced "A" series supplies means there are even more ways to use the instruments. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application. Select the value models for best price performance or upgrade to the "A" model to improve resolution and add advanced monitoring, triggering, and programming capabilities.

Why Buy the Rigol DP800 Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!



DP800 Main Features

User-friendly Design:

  • 3.5 inch TFT display, can display multiple parameters and states at the same time
  • Support Chinese/English interface and Chinese/English input method
  • Novel and exquisite industrial design and easy operation
  • Provide waveform display function to provide real-time and dynamic display of the output voltage/current waveform, clearly showing the output state and tendency of the instrument in together with the digital display of the voltage, current and power values
  • Provide dial display function, indicating the current output state using the dial pointer by simulating the traditional power display mode
  • Provide on-line help system for easy acquisition of help information

Multiple Safety Protection:

  • Provide overvoltage/overcurrent protection function; users can set the overvoltage and overcurrent parameters to realize effective protection of the load
  • Provide secondary over-temperature protection function to realize double over-temperature protection of the software and hardware
  • Provide intelligent fan speed control function; judge and control the fan speed automatically according to the working condition to effectively reduce the fan noise
  • Provide fan failure check and alarm function
  • Provide keyboard lock function to avoid misoperation

Various Functions and Superb Performance:

  • Multi-channel output; up to 200W total output power; the output of each channel can be controlled independently
  • Superb load regulation rate and linear regulation rate
  • Provide ultra-low output ripples and noise
  • Provide timing output function and support infinite and specified number of cycles of output
  • Provide track function to track the channel voltage setting value and the output on/off status
  • Provide Sense function to automatically compensate for the voltage drop caused by the leads between the power supply and the load
  • Provide delay on/off output function and support infinite or specified number of cycles of channel on/off toggle
  • Provide built-in digital trigger to realize digital trigger input and trigger output functions
  • Provide built-in on-line analyzer to perform on-line analysis of various statistic parameters
  • Provide built-in monitor to monitor the output according to the user-defined monitor condition
  • Provide built-in recorder to perform background recording of the output state after power-on according to certain record period
  • Provide dedicated preset key to perform one-key reset and one-key recall of the commonly used output voltage and current configurations
  • Support serial and parallel output functions
  • Support on-line self-test and manual calibration functions
  • Provide store and recall function
  • Support voltage and current linear programmable functions

Complete Interface Configurations and Flexible Control Method:

  • Standard configuration interfaces: USB HOST, USB DEVICE, LAN, RS232, Digital I/O, Rear Output Interface (DP811A)
  • Support to extend a GPIB interface via the USB-GPIB interface converter (option)
  • Support USB storage device storage
  • Support SCPI remote command control
  • Conform to LXI Core 2011 Device instrument standard
  • Provide standard 9 pin RS232 interface with flow control function
  • Provide 4-wire digital I/O interface which supports the trigger input/output function

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
RIGOL DP832A FOR RENT RIGOL DP832A FOR RENT

Triple Output Power Supply 195W 1mV/1mA Resolution FLV $800

Order #: DP832A-RENT1

Call for Price

RIGOL DP832 RIGOL DP832

Triple Output Power Supply,195W 10mV/10mA Resolution

Order #: DP832

In Stock
$450.00 USD
Add Items to Cart Add to Quote

RIGOL DP831 RIGOL DP831

Triple Output Power Supply, 160W

Order #: DP831

In Stock
$450.00 USD
Add Items to Cart Add to Quote

RIGOL DP811 RIGOL DP811

DC Power Supply, Single Output, Linear, Up to 40V or 10A, 200W

Order #: DP811

In Stock
$586.00 USD
Add Items to Cart

RIGOL DP821 RIGOL DP821

DC Power Supply, Dual Output, 60V/1A & 8V/10A w/ Remote Sense

Order #: DP821

In Stock
$586.00 USD
Add Items to Cart

RIGOL DP831A RIGOL DP831A

Triple Output Power Supply,160W

Order #: DP831A

In Stock
$790.00 USD
Add Items to Cart Add to Quote

RIGOL DP832A RIGOL DP832A

Triple Output Power Supply,195W 1mV/1mA Resolution

Order #: DP832A

Usually ships in 7-10 days

$800.00 USD
Add Items to Cart Add to Quote

RIGOL DP821A RIGOL DP821A

DC Power Supply, Dual Output, 60V/1A & 8V/10A w/ Remote Sense

Order #: DP821A

In Stock
$870.00 USD
Add Items to Cart

RIGOL DP811A RIGOL DP811A

DC Power Supply, Single Output, Linear, Programmable, 200W

Order #: DP811A

In Stock
$910.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

  • 3 Outputs; total power up to 195W
  • Low Ripple Noise <350 uVrms/2mVpp
  • Fast transient response time: <50 us
  • Channel isolation: CH1 || CH2,CH3
  • OVP/OCP/OTP protection functions
  • Built in V, A, W measurements and waveform display
  • Support for output Delay, Analysis, Monitor, and Preset functions
  • 3.5 inch TFT Display
  • Connectivity including USB Host & Device, LAN, and Digital IO

Specifications :

Model DP832A DP832 DP831 DP831A DP811 DP811A DP821 DP821A

Channels

3

1

2

DC Output (0°C to 40°C )



Voltage/current

CH1: 0 to 30V/0 to 3A
CH2: 0 to 30V/0 to 3A
CH3: 0 to 5V/0 to 3A

CH1: 0 to 8V/0 to 5A
CH2: 0 to +30V/0 to 2A
CH3: 0 to -30V/0 to 2A

0 to 20 V/ 0 to 10 A (Low Range) or



0 to 40 V/0 to 5 A (High Range)

CH1: 0 to 8 V
          0 to 10 A

CH2: 0 to 60 V
          0 to 1 A

OVP/OCP

CH1: 1mV to 33V/1mA to 3.3A
CH2: 1mV to 33V/1mA to 3.3A
CH3: 1mV to 5.5V/1mA to 3.3A

CH1: 10mV~33V/1mA~3.3A
CH2: 10mV~33V/1mA~3.3A
CH3: 10mV~5.5V/1mA~3.3A

CH1:1mV ~ 8.8V/0.1mA ~ 5.5A
CH2:1mV ~ 33V/0.1mA ~ 2.2A
CH3:-1mV ~ -33V/0.1mA ~ 2.2A

0.1 V to 22 V or

0.1 V to 44 V

CH1: 0.1 to 8.8 V
0.1 to 10.5 A

CH2: 0.1 to 66 V
0.1 to 1.1 A

Load Regulation Rate ±(Output Percentage + Offset)



Voltage

<0.01%+2mV

Current

<0.01%+250uA

Linear Regulation Rate ±(Output Percentage + Offset)



Voltage

<0.01%+2mV

Current

<0.01%+250uA

Ripples and Noise (20Hz to 20MHz)



Normal Mode Voltage

<350μVrms/2mVpp

Normal Mode Current

<2mArms

Common Mode Current

<1.5μArms

Not specified

Annual Accuracy [1] (25°C ±5°C ) ±(Output Percentage + Offset)



Programming

Voltage

0.05% + 10mV

CH1: 0.1% + 5mV
CH2: 0.05% + 20mV
CH3: 0.05% + 20mV

0.05% + 10mV

CH1: 0.1% + 25mV

CH2: 0.05% + 10mV

Current

0.2% + 10mA

CH1: 0.2% + 10mA
CH2: 0.2% + 5mA
CH3: 0.2% + 5mA

0.1% + 10mA

0.2% + 10mA

Readback

Voltage

0.05% + 5mV

CH1: 0.1% + 5mV
CH2: 0.05% + 10mV
CH3: 0.05% + 10mV

0.05% + 10mV

CH1: 0.1% + 25mV

CH2: 0.05% + 5mV

Current

0.15%+ 5mA

CH1: 0.2% + 10mA
CH2: 0.1% + 5mA
CH3: 0.1% + 5mA

0.1% + 10mA

0.15% + 10mA

Resolution



Programming

Voltage

1mV

10mV
With high-resolution option:
1mV

CH1: 1mV
CH2: 10mV
CH3: 10mV

1mV

10mV

1mV

CH1: 10 mV

CH2: 10 mV

CH1: 10 mV

CH2: 1 mV



Current

1mA

1mA

1mA

CH1: 0.3mA
CH2: 0.1mA
CH3: 0.1mA

10mA

0.5mA

CH1: 1 mA

CH2: 10 mA

CH1: 0.1 mA

CH2: 1 mA

Readback

Voltage

0.1mV

10mV
With high-resolution option:
0.1mV

1mV

0.1mV

1mV

0.1mV

CH1: 10 mV

CH2: 10 mV

CH1: 1 mV

CH2: 1 mV



Current

0.1mA

1mA
With high-resolution option:
0.1mA

1mA

0.1mA

1mA

0.1mA

CH1: 1 mA

CH2: 10 mA

CH1: 0.1 mA

CH2: 1 mA

Display

Voltage

1mV

10mV
With high-resolution option:
1mV

10mV

1mV

10mV

1mV

CH1: 10 mV

CH2: 10 mV

CH1: 1 mV

CH2: 1 mV



Current

1mA

10mA
With high-resolution option:
1mA

10mA

1mA

10mA

1mA

CH1: 1 mA

CH2: 10 mA

CH1: 0.1 mA

CH2: 1 mA

Transient Response Time



Less than 50μs for output to recover to within 15mV following a change in output current from full load to half load or vice versa.

Command Processing Time [2]



<118ms

Temperature Coefficient per degree C (Output Percentage + Offset)



Voltage

CH1/CH2: 0.01%+5mV
CH3: 0.01%+2mV

0.01%+2mV

0.01%+3mV

Current

0.01%+2mA

0.02%+3mA

0.02%+3mA

Stability [3] ±(Output Percentage + Offset)



Voltage

CH1/CH2: 0.02%+2mV
CH3: 0.01%+1mV

CH1: 0.03% + 1mV
CH2: 0.02% + 2mV
CH3: 0.02% + 2mV

0.02%+1mV

Current

0.05%+2mA

CH1: 0.1% + 3mA
CH2: 0.05% + 1mA
CH3: 0.05% + 1mA

0.1%+1mA
