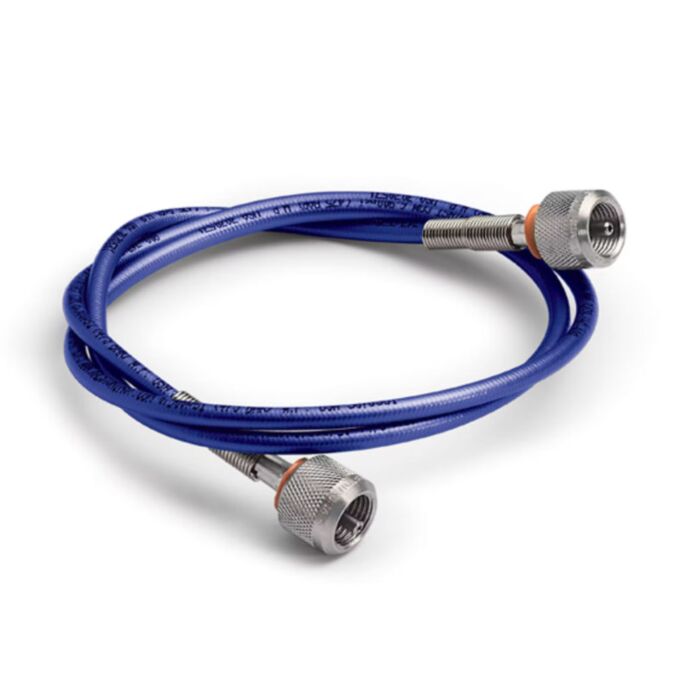

Ralston Instruments XTXT-HOS-3FT

Quick-test XT 10,000PSI Hose SS Hose Ends,3ft long

Order #: XTXT-HOS-3FT

Mfg Part #: XTXT-HOS-3FT

$121.80 USD

$118.15 USD




Ships in 2-3 weeks

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Ralston Instruments Products

Overview :

Product Highlights

10,000 psi (689 bar) working pressure Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test.

  • Low volume reduces the pumping effort or compressed gas usage in pressure calibration
  • No thread sealant required – connect to adapters without wrenches, thread sealant or thread tape
  • Bubble tight connections to 10000 psi (689 bar) with no moving parts reduces maintenance to almost zero
  • Hose is hard to break and very flexible
  • Adapt from hose to virtually any device under test with only one connection
  • A corrosion resistant strain-relief on each hose end reduces wear and dramatically increases hose life
  • Hose is not recommended for Helium or Argon applications
  • Hose is pin-pricked for use in Natural Gas applications
  • Quick-test XT hoses are NOT compatible with QTHA adapters. Please use XTHA adapters
  • Made in USA
  • Length: 3 ft
  • Pressure Range: 0 to 10000 psi (0 to 689 bar)
  • Burst Pressure: 40000 psi (2,756 bar)
  • End 1: Female Quick-test XT, stainless steel
  • End 2: Female Quick-test XT, stainless steel
  • Temperature range: -40 to 140 °F (-40 to 60 °C)
  • Outer Diameter: 0.24 in (6.1 mm)
  • Inner Diameter: 0.08 in (2.0 mm)
  • Minimum Bend Radius: 1 in (25.4 mm)
  • Color: Blue
  • Construction: Polyamide core tube, High tensile synthetic fiber and polyamide outer cover
  • End materials: Stainless Steel
  • Fluid Media: Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
