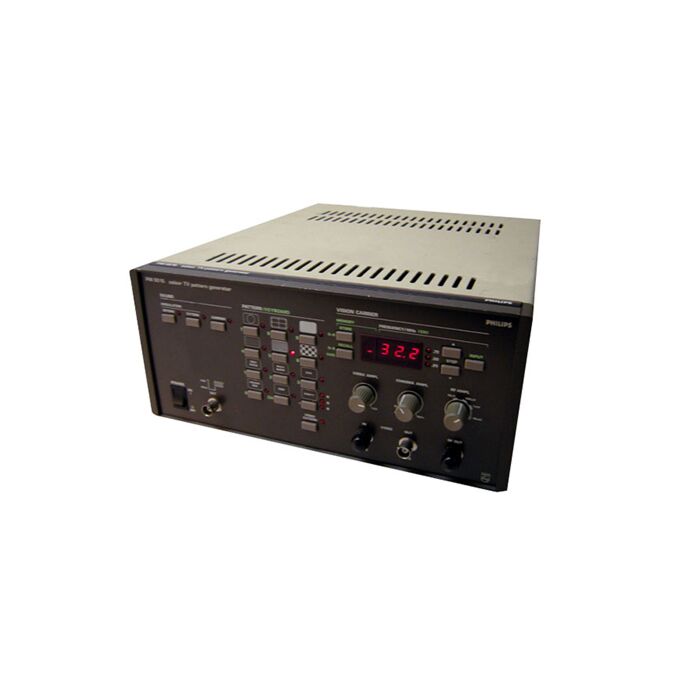

Phillips PM5518 FOR RENT

Video Signal Generator 32 to 900 MHz

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: PM5518-RENT2

Mfg Part #: PM5518

Call for Price




Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

Overview :

Phillips PM5518 Highlights

The PM 5518 TX offers a complete range of color pattern generator performance. With a choice of powerful yet easy-touse instruments that speed and simplify every aspect of video testing and troubleshooting. Providing a complete and economic solution for every testing requirement: color TV, closed circuit TV systems, video recorders, and video display monitors.

  • Frequency Range: 32 to 900 MHz
  • Setting: Keyboard
  • Resolution:
    • 100 kHz Steps: 32.0 to 99.9 MHz
    • 250 kHz Steps: > 100 MHz
  • Tolerance:
  • < 25 kHz: 32 to 300 MHz
  • < 35 kHz: 300 to 470 MHz
  • < 50 kHz: 470 to 900 MHz
  • RF Output Voltage: > 10 mV
  • Impedance: 75 W
  • Attenuation: > 60 dB continuous
  • Frequency Response:
    • ±2 dB: 32 to 300 MHz
    • ±3 dB: 300 to 470 MHz
    • ±2 dB: 470 to 900 MHz
  • Video Input Voltage: 1 Vpp
  • Video Output Voltage: 0 to 1.5 V
