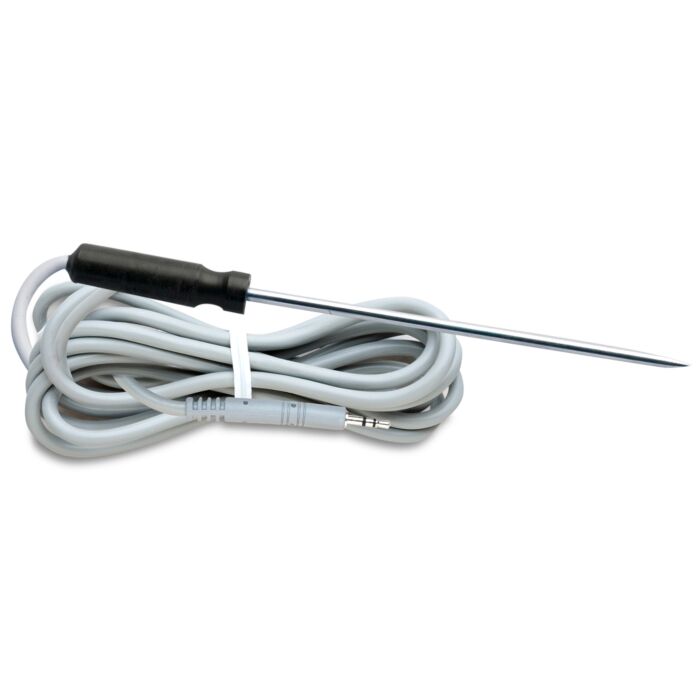

Onset HOBO Data Loggers TMC6-HC

6'SS Probe

Order #: TMC6-HC

Mfg Part #: TMC6-HC

$87.00 USD



Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All OnSet HOBO Data Loggers Products

Overview :

Product Highlights

A food-grade stainless-steel temperature probe with pointed tip for use with HOBO U-Series external-channel data loggers or ZW series wireless datanodes. Accuracy and resolution vary according with attached logger model. Measurement range is -40° to 100°C (-40° to 212°F) in air or water; response time is 3 minutes typical to 90% in air moving 1m/sec (2.2mph); response time in stirred water is 15 seconds typical. Sensor is attached to a 1.8m (6ft) cable.

  • Plug directly into the external input jacks of U12, UX120, or ZW Family loggers to expand the range of measurement options and applications
  • Measurement range: -40° to 50°C (-40° to 122°F) in water; -40° to 100°C (-40° to 212°F)
  • Accuracy:
    • w/U12: ±0.25°C from 0° to 50°C (±0.45°F from 32° to 122°F), insert probe 5.08 cm (2 inches) minimum;
    • w/ZW: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), insert probe 5.08 cm (2 inches) minimum;
    • w/UX120-006M: ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F), insert probe 5.08 cm (2 inches) minimum;
  • Resolution:
    • w/U12: 0.03° at 20°C (0.05° at 68°F);
    • w/ZW: 0.02°C at 25°C (0.04°F at 77°F);
    • w/UX120-006M: 0.002° at 25°C (0.003° at 77°F);
  • Drift: <0.1°C (<0.2°F) per year
  • Response time in air: 3 min. typical to 90% in air moving 1 m/sec (2.2 mph)
  • Response time in stirred water: 15 sec. typical to 90%.
  • Operating range: Sensor tip and cable immersion in fresh water up to +50°C (122°F) for 1 year
  • Probe dimensions: 102mm (4 in.) food-grade stainless steel probe with pointed tip; 3.2mm ±0.25mm (0.12 inches ±0.01) diameter
  • Cable length: 1.8m (6 feet)

Note: The stainless steel probe is waterproof, but the handle is not intended for prolonged use in water or moist environments, especially those with temperatures greater than 30°C (86°F). For more details contact Transcat
