Noshok 5132-FFC

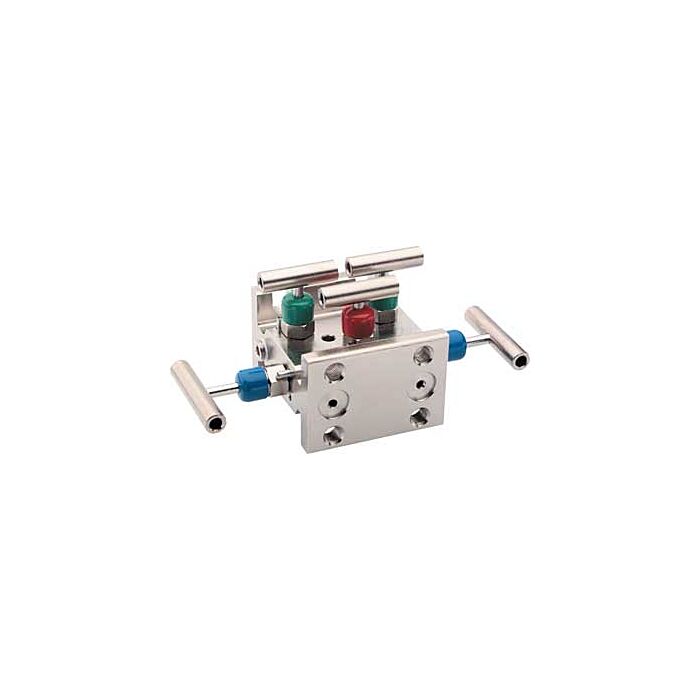

5 Valve Manifold

Order #: 5132-FFC

Mfg Part #: 5132-FFC

$241.95 USD

$225.35 USD


Ships in 2-3 weeks

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Noshok Products

Overview :

Product Highlights

  • Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve in natural gas applications
  • Available in block, single flange, or double flange connection for remote or direct installation
  • All manifold bodies are machined from cold drawn extrusion allowing NOSHOK to hold tighter tolerances
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • 5030 Series hard seat valves have 10,000 psi pressure rating (@ 200°F maximum)
  • 5130 Series soft seat/tip valves have 6,000 psi pressure rating (@ 200°F maximum)
  • 5130 Series valves also feature a replaceable Delrin® seat, and straight through porting for bi-directional, high capacity flow and easy roddable cleaning on the block valves
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • Viton® o-ring seal and Teflon® back-up ring below the stem threads to protect from corrosion and galling
  • All stem threads are 316 stainless steel
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Bonnet lock pin to prevent accidental loosening
  • Vinyl bonnet and stem dust cap
  • 0.187 inch orifice size
  • Electroless nickel plated finish on carbon steel valves
  • Electropolish finish on stainless steel valves
