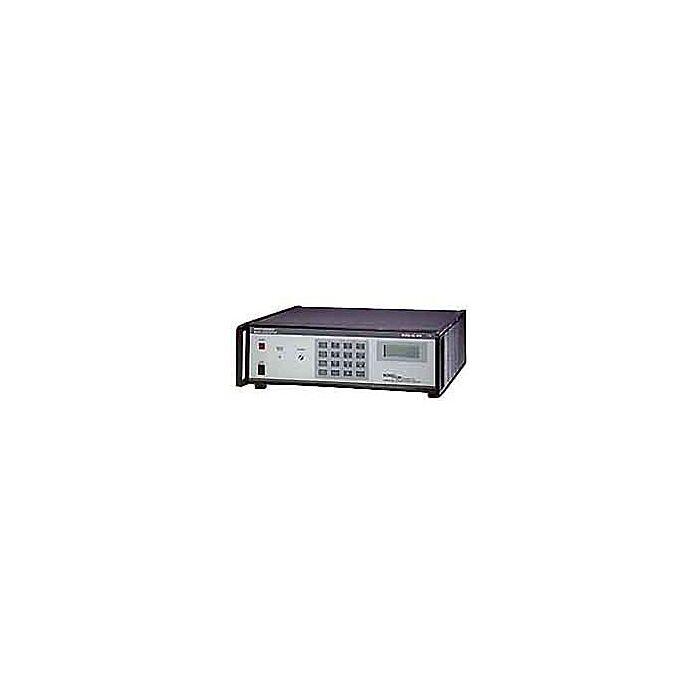

Noisecom UFX7110 Highlights
The UFX7110 noise generating instrument is extremely easy to use, combining dedicated keys for control of operations and programming with a large 4 x 20 character LCD display for instant status information. The instruments are direct replacements for NoiseCom's NC7000 Series instruments.
The UFX7110 contains a NoiseCom amplified noise source that is tuned to provide the best flatness at the instrument output. The amplifier is optimized to deliver an output with a Gaussian amplitude distribution. Noise output power level can be adjusted from 0 to 127 dB in 1 dB (optionally 0.1 dB) steps.
- -82dBm/Hz Output
- +/-1.5dB Flatness
- White Gaussian Noise Ouput
- Nominal output is 10mW into 50 Ohms
- 1.5:1 Typical VSWR, GPIB
- Option 13: 0 to 127.9dB Signal attenuator in 0.1dB steps
