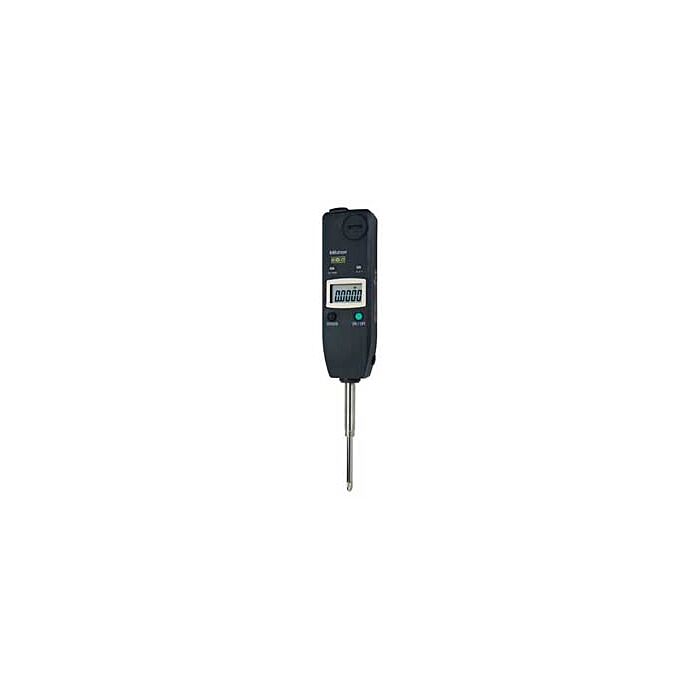

Mitutoyo 575-122

Product Highlights

• Range 0-1in 0-25.4mm
• Resolution .0005in 0.01mm
• Accuracy .0008in
• Measuring Force 1.8N or less
• Stem Diameter 5/16in
• Remarks M2.5x0.45 Thread ISO/JIS type
• Accuracy: Refer to the list of specifications.
• Resolution: 0.01mm or .0005"/0.01mm
• Display: LCD
• Length standard: ABSOLUTE electrostatic capacitance type linear encoder
• Max. response speed: Unlimited
• Measuring force: Refer to the list of specifications
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 20,000 hours under normal use
• Dust/Water protection level: IP42
• Function
• Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion
• (on inch/metric models only)
• Alarm: Low voltage, Counting value composition error, Over-flow error
