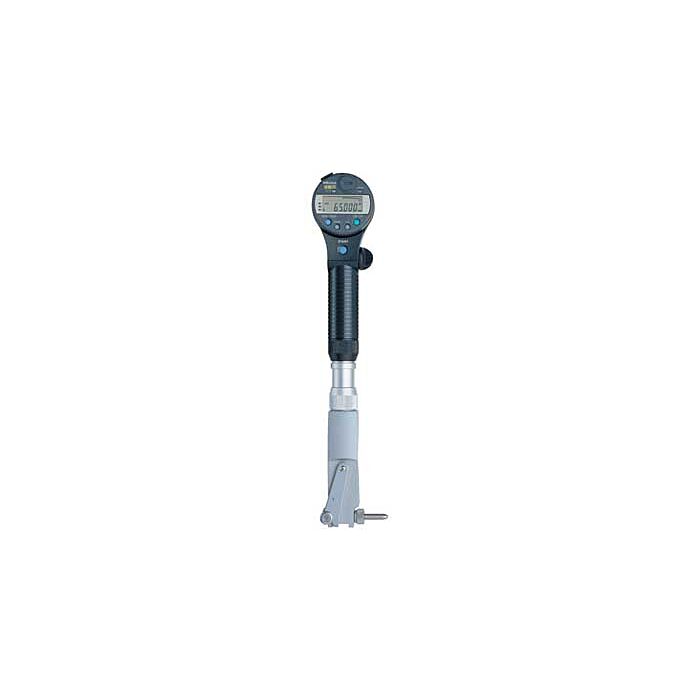

Mitutoyo 511-521

Absolute Digimatic Bore Gage 1.8-4"

Order #: 511-521

Mfg Part #: 511-521

$1,150.00 USD

$1,092.50 USD


Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States, Canada and Puerto Rico only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Mitutoyo Products

Overview :

Product Highlights

  • The minimum value holding function provides the easy detection of hole diameter
  • Up to three sets of master value and upper/lower tolerance value can be memorized
  • An analog bar indicator is integrated to enhance the intuition in reading
  • GO/±NG judgment is performed by setting the upper and lower tolerances
  • Up to four rods (250mm or 500mm) can be used
  • Accuracy: Wide Range: 0.003mm / .00012”
  • Narrow Range: 0.002mm / .00008” Resolution: .00005" / 0.001mm
  • Display: LCD
  • Battery: SR44 (1 pc.) (938882)
  • Battery life: Approx. 9 months for normal use
  • Dust/Water protection level: Conforming to IP53
  • Origin-set, Zero-Setting, Presetting, Power on/off, inch/mm conversion (inch/mm type only),
  • Data output, GO/±NG tolerance judgment
  • Alarm: Low battery voltage, scale contamination, over-flow error, tolerance limit setting error
  • Range 1.8-4in 45-100mm
  • Probe 6 in 152.4mm
