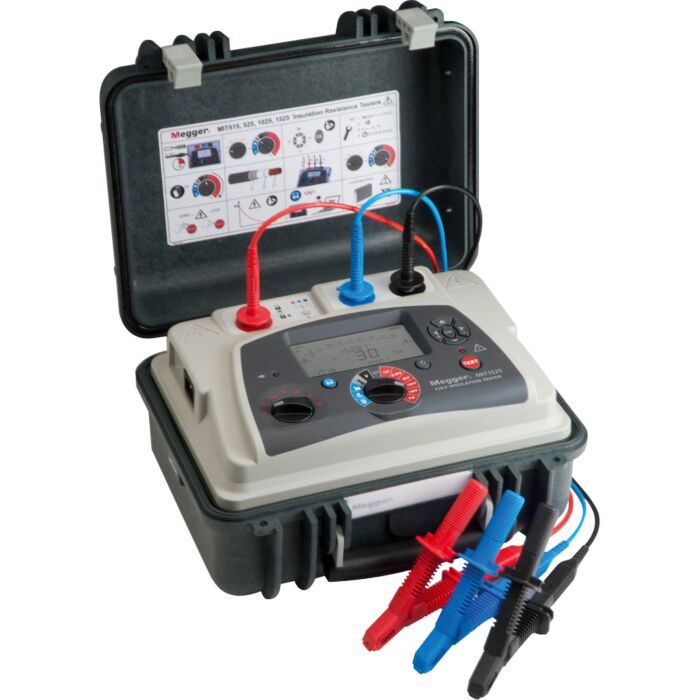

Megger MIT1525 for Rent

Insulation Resistance Tester,15kV FLV $5995

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Megger's range of MIT insulation resistance testers are targeted at original equipment manufacturers and industrial companies. The top of the new range MIT1525 performs insulation resistance tests up to 15 kV with a 30 TΩ maximum resistance and an accuracy of ±5 % from 1 MΩ up to 3 TΩ

Order #: MIT1525-RENT1

Mfg Part #: MIT1525-RENT1

Call for Price


3 In stock

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Megger Products

Overview :

Product Highlights

  • Insulation resistance up to 30 TO @ 15 kV, 20 TO @ 10kV, 10 TO @ 5 kV
  • IR, Timed IR, DAR, PI, DD, SV and ramp diagnostic tests
  • High current – 3 mA short circuit current
  • High noise immunity – 3mA (5kV and 10kV) 6mA (15kV) of noise rejection
  • Li-ion battery – up to 6 hrs continuous testing @ 5 kV with a 100M load, battery meets IEC 62133
  • Safety rating: CATIV 600 V to 3000 m (5 kV, 10 kV)
  • CATIV 1000 V to 3000 m (15 kV)
  • Large LCD display with backlight
  • Dedicated voltmeter function (30 V to 660 V)
  • Advanced memory, on screen recall and real time clock for date/time stamped results
  • Download of on-board results via USB interface
  • PowerDB Lite asset management software
  • Recorded temperature (measured by independent instruments) can be saved with test result
  • PowerDB Lite asset management software supplied

Each Unit Includes

  • Power lead
  • USB cable
  • PowerDB Lite software
  • Product Information CD
