Keysight Technologies 85133F

Flexible Test Port Cable Set 2.4mm

Order #: 85133F

Mfg Part #: 85133F

$7,737.00 USD



Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States and Canada only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Keysight Technologies Products

Overview :

Product Highlights

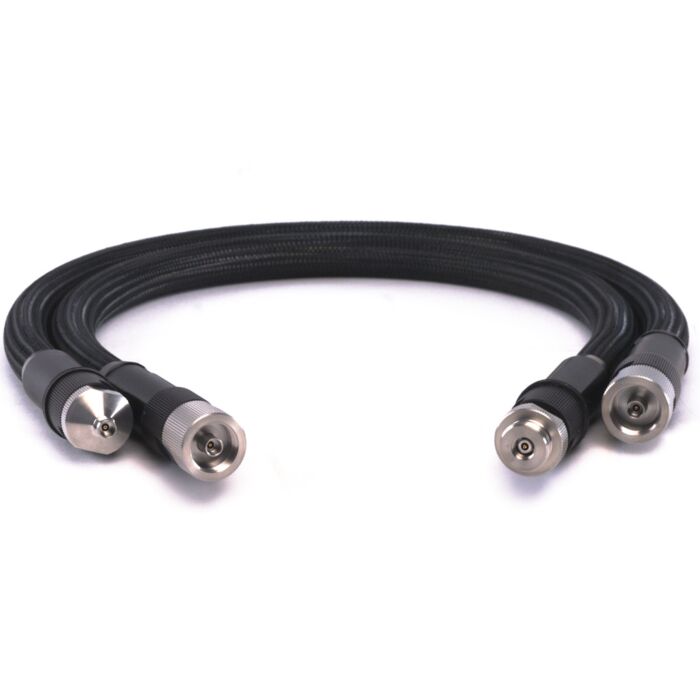

  • The Agilent 85133F is a 63 cm (25 in) long flexible cable set composed of a 2.4 mm female to PSC-2.4 mm female connector and a 2.4 mm female to 2.4 mm male connector
  • Cable frequency range is DC to 50 GHz with a return loss of greater than or equal to 12.5 dB.
  • Insertion loss is 0.48 * sqrt (f) + 0.25, where f is frequency in GHz, for the test port connector and 3.64 dB at maximum frequency for the device connector.
  • Phase stability of semi-rigid/flexible cables is specified with a 90 degree bend using a 4 to 3 inch radius.
  • Stability of the Agilent 85133F is less than 0.17 dB and phase is 0.16*f + 0.8, where f is frequency measured in GHz.
