Keysight Technologies N6700B FOR RENT

400W, 4-Slot DC Modular Power Supply (MPS) Mainframe

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: N6700B-RENT2

Mfg Part #: N6700B

Call for Price




Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Keysight Technologies Products

Overview :

Keysight N6700B Highlights

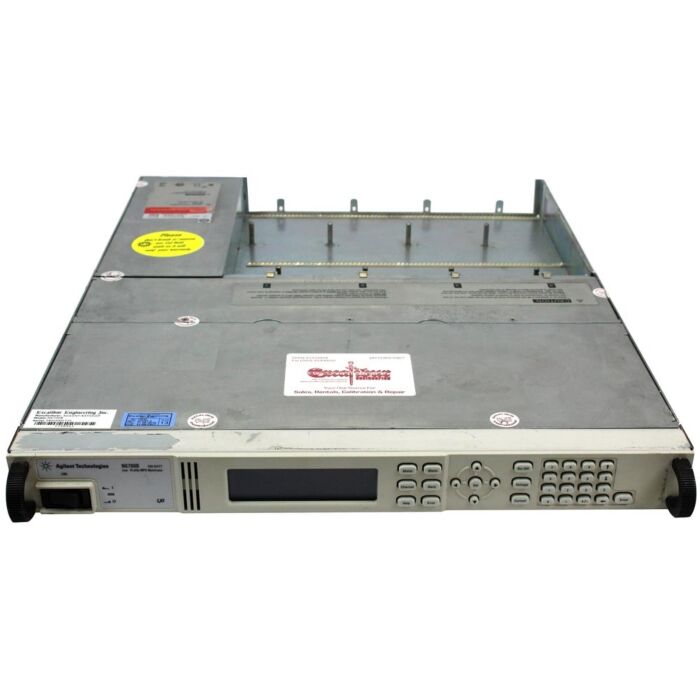

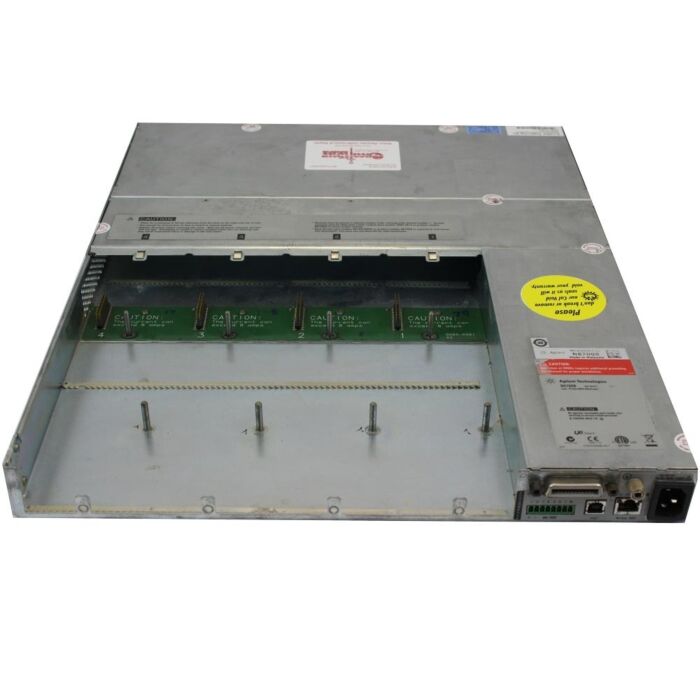

The Keysight N6700B is a 400 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700B offers GPIB, LAN, and USB, interfaces standard, and LXI compliance. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.

  • Maximum Total Output Power (= Sum of Total Module Output Power)
  • 400 W when operating from 100 - 240 VAC input
  • AC Input
  • Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
  • Input Range: 86 VAC - 264 VAC
  • Power Consumption: 1000 VA typical
  • Fuse Internal fuse (not customer accessible)
  • Protection Response Characteristics
  • INH input: 5 µs from receipt of inhibit to start of shutdown
  • Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)
  • Accepts 1 to 4 N6700 Series DC power modules, Low-Profile (1U high), GPIB, LAN, USB, LXI Class C
