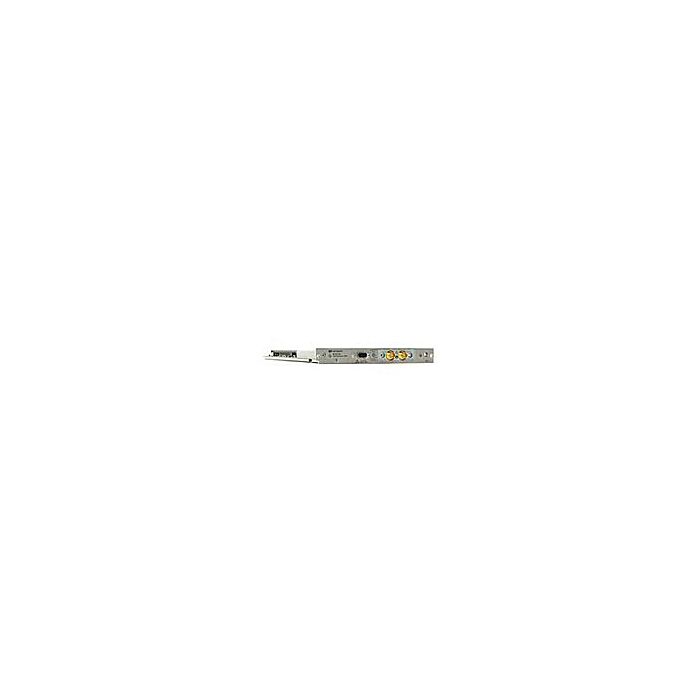

Keysight Technologies B1511A FOR RENT

Medium Power Source Monitor Unit for B1500A

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: B1511A-RENT2

Mfg Part #: B1511A

Call for Price


1 In stock

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Keysight Technologies Products

Overview :

Keysight B1511A (Agilent) Highlights

Source/Measure Units (SMUs), such as the Keysight B1511A (Agilent), are the key measurement modules of the Agilent / Keysight B1500A Semiconductor Device Parameter Analyzer. The SMUs integrate voltage/current source and measurement capabilities into a module, and it enables accurate DC current-voltage (IV) measurement with down to fA / µV resolution. The low current measurement performance can be expanded down to sub-fA level by the optional ASU (Atto sense switch unit) if you need more measurement performance.

The B1511A can also perform the Quasi-Static Capacitance-Voltage (QS-CV) measurement. It is a measurement method to obtain low frequency CV characteristics, and it is important to characterize the surface state of the gate of transistor as well as high frequency CV. Keysight B1500A enables accurate QS-CV measurement with the leak current compensation.

Along with analysis and data management capability of EasyEXPERT software, it is very powerful and useful to perform characterization for semiconductor, nano devices such as carbon nanotube (CNT) and carbon nanowire (CNW), active/passive component, material and any electric devices that require accurate and precise voltage/current measurement.

  • MPSMU - Range up to 100 V / 100 mA with 4-quadrant operation
  • Minimum measurement resolution 10 fA / 0.5 _V
  • Minimum source resolution 50 fA / 25 µV
  • Max Pulse Width of 2 s
  • Optional ASU (atto-sense and switch unit) is supported to expand the range down to 1pA range with 0.1 fA measurement resolution
