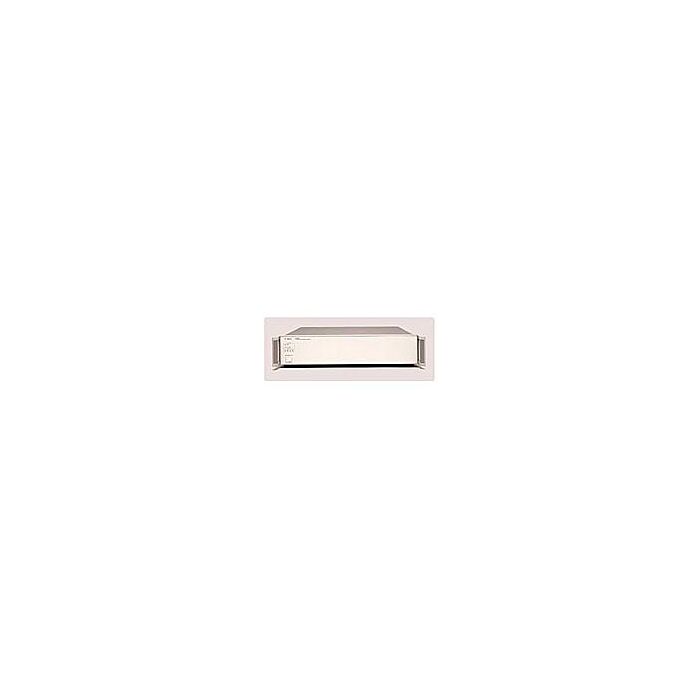

Keysight Technologies 87130A FOR RENT

Attentuator/Switch Driver

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: 87130A-RENT2

Mfg Part #: 87130A

Call for Price




Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Keysight Technologies Products

Overview :

Keysight 87130A Highlights

The Keysight Agilent HP 87130A is a 3 1/2 inch, full-width System II attenuator/switch driver capable of driving up to 248 bistatic electromechanical switch or attenuator sections. The Keysight Agilent HP 87130A is controlled over GP-IB via Standard Commands for Programmable Instruments (SCPI) commands. It has been designed for use in both ATE switching systems and computer-controlled bench top applications. The Keysight Agilent HP 87130A has no front panel controls. Manual control is realized through an ITG driver and a computer controller. The Keysight Agilent HP 87130A can drive 31 switches via seven additional Keysight Agilent HP 84940A driver cards.

  • Controls up to 248 switch and/or step attenuator sections
  • Simple programming through GP-ITG and GP-VEE
  • Switch position sensing
  • SCPI compatible
  • Drive Capacity: Internal Driver: 31 relays; one Keysight Agilent HP 84940A driver card is installed within the instrument
  • External Drivers: 217 additional relays; up to 7 additional Keysight Agilent HP 84940A driver cards can be daisy-chained external to the Keysight Agilent HP 87130A. EachKeysight Agilent HP 84940A can drive 31 relays
  • Voltage: +24 V ±3.0 Vdc (Miswiring the +24 V wire will cause catastrophic driver board failure)
