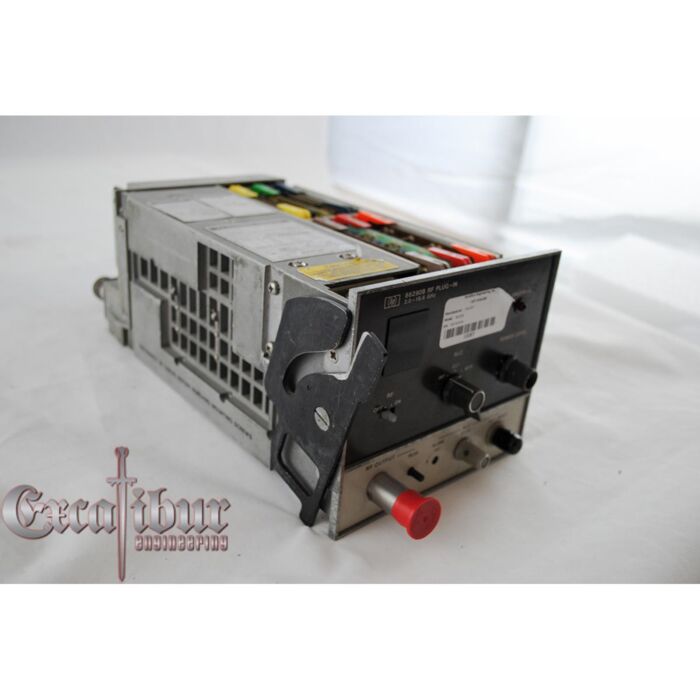

Keysight 86290B Highlights
The 86290B Broadband RF Plug-In is designed for use with the 8620C Mainframe.
- It covers the frequency range from 2.0 to 18.6GHz in four bands, Band 1 from 2 to 6.2GHz, Band 2 from 6 to 12.4GHz, Band 3 from 12 to 18.6GHz, and Band 4 from 2 to 18.6GHz. Output of +10 dBm, 2 to 18.6GHz. Power level control range of 10 dBm
- Sweep time of 10 msec single bands, 60 msec on 2 to 18.6GHz band (Band 4)
- Option 004 = Rear Panel RF
- Output Option 005 = APC-7 RF Output Connector
