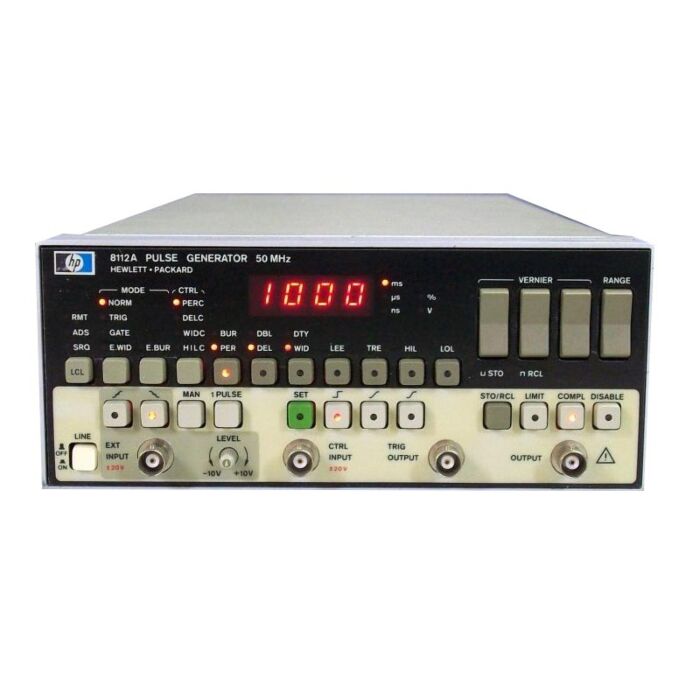

Keysight 8112A Highlights
The 8112A is a fully programmable 50 MHz pulse generator with 5 ns transitions and 32 V p-p (into open circuit) max output amplitude. All pulse parameters are variable including delay and double pulse spacing.
Besides the comprehensive trigger modes, external modulation capabilities extend applicability; upper level, width, period and delay-modulated signals are available. These can be combined with the trigger modes so that complex real-life signals like modulated bursts are simulated easily.
For multi-channel applications, higher frequencies or multi-level signals, refer to the Keysight 8110A pulse pattern generator.
- 50 MHz, 5 ns, 16 V p-p (into 50 Ohm)
- Full pulse capability
- Small size
- Max Output Amplitude 32V p-p (into open circuit), Full pulse capability, External Modulation capabilities
