Order #: 70820A-RENT2
Mfg #: 70820A

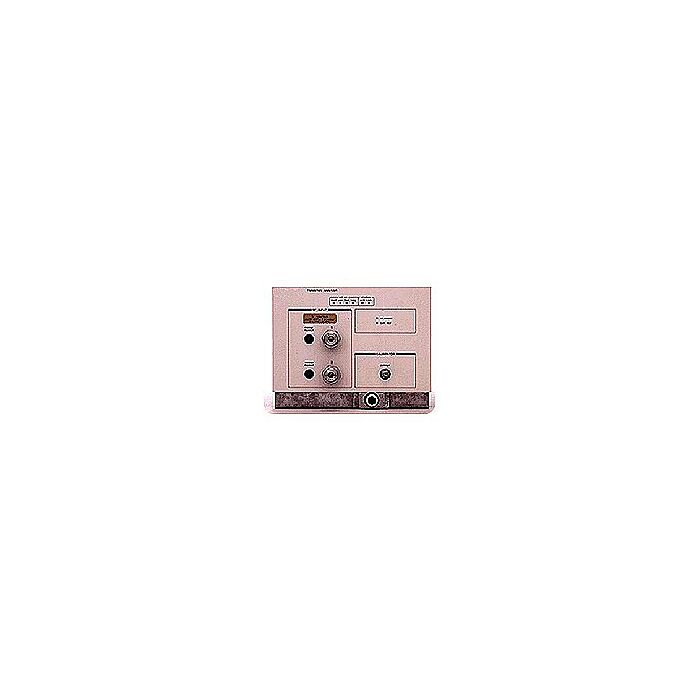

Keysight 70820A for Rent, Microwave Transition Analyzer, DC to 40 GHz
Order #: 70820A-RENT2
Mfg #: 70820A
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Keysight 70820A Highlights
The 70820A microwave transition analyzer module is a two-channel sampler-based time-domain instrument for making stimulus-response measurements from dc to 40 GHz. It makes CW and pulse-RF measurements, specializing in measuring fast magnitude and phase transitions. It is ideal for characterizing components and systems in a benchtop environment. You can measure magnitude and phase settling times, rise and fall times, time delay, peak and average power, group delay, AM to PM conversion, analysis of AM, FM, and PM on RF carriers and much, much more. All functions of the 70820A are programmable. In addition, custom application-specific interfaces can be developed for Keysight Instrument BASIC and run internally. This use of IBASIC eliminates the need for an external controller in many applications.
- DC to 40 GHz with two channels
- Time domain measurements with FFTs
- Up to 1 ps delta time accuracy
- Magnitude and phase measurements on pulsed-RF signals to 100 ps pulse widths and 25 ps edges
- Analysis of AM, FM, and PM on RF carriers
- Stepped frequency and power sweeps, magnitude and phase
- IBASIC for measurement programs
- 4-slot MMS module
