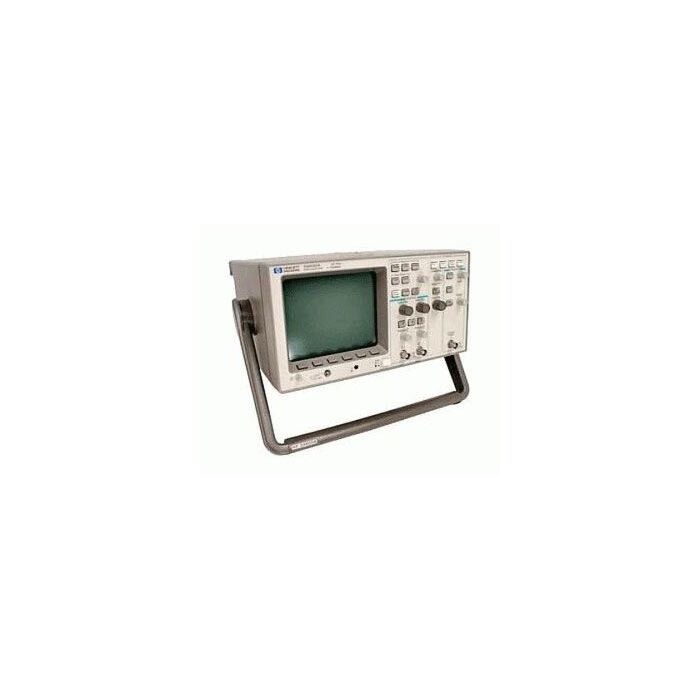

Keysight 54600A Highlights
These oscilloscopes also have features normally associated with full-featured analogue oscilloscopes. These include delayed sweep, bandwidth limit, AC/DC coupling, adjustable vernier on both horizontal and vertical axes, trigger conditioning (AC/DC coupling, low-frequency reject, high-frequency reject and noise reject and a full-screen XY (channel versus channel) mode.
- Two full-range inputs (2 mV/div to 5V/div)
- The bandwidth of all channels is 100 MHz
- A maximum sample rate of 20 mega-samples per second provides a 2 MHz bandwidth for capturing single-shot events
- The 8-bit analogue-to-digital converter has a vertical resolution of 0.4%
