Keysight Technologies 5316A FOR RENT

Universal Counter

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: 5316A-RENT2

Mfg Part #: 5316A

$75.00 USD

Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

View All Keysight Technologies Products

Overview :

Keysight 5316A Highlights

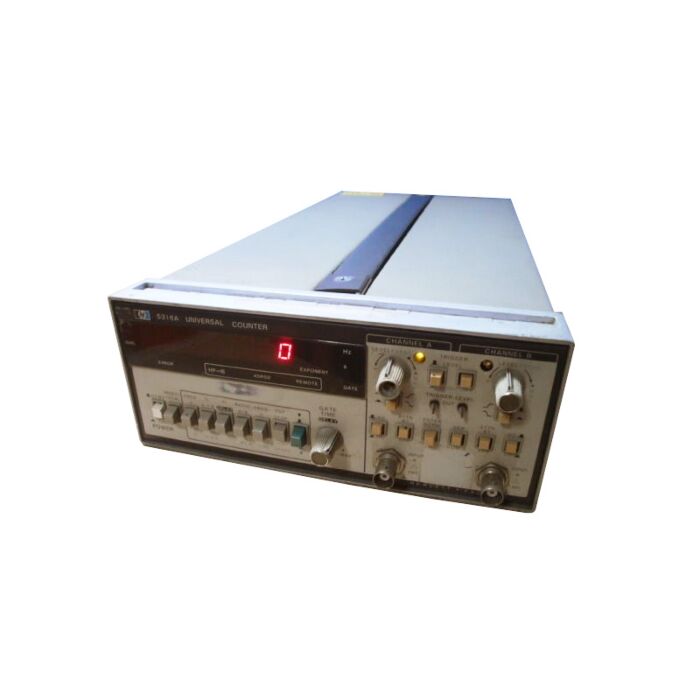

The Keysight 5316A is a universal counter, measuring signals over a range of DC to 100 MHz. The 5316A measures Frequency, Period, Time Interval Average, Time Interval Holdoff (delay), and Ratio. A Totalize function with manual or external gating is also provided. All measurements except Totalize are displayed in engineering notation with up to eight digits of resolution.

  • The 5316A can be programmed via the Hewlett Packard Interface Bus (HP-IB)
  • Two independent input channels are provided for time interval measurements
  • Each input channel has an Attenuator (X1, X20), Trigger Slope selector, Trigger Level / Sensitivity control, three-state trigger lamps, and front panel Trigger Level Monitoring jacks
  • A front panel selectable Low-Pass Filter is provided for Channel A
  • Four options extend the capabilities of the 5316A:
    • Option 001 TCXO and Option 004 Oscillator offer improved time base stability
    • Option 003 Channel C frequency measurements in the range of 50 MHz to 1 GHz
    • Option 006 Offset / Normalizer allows active mathematical modifications to the 5316A
  • The 5316A is designed for rack mounting or stacking, and features a metal cabinet to minimize EMI
  • Frequency range: 0.1 Hz to 100 MHz
  • Resolution: 8 digits
  • Measurements: Frequency, ratio, totalization, period, time interval
