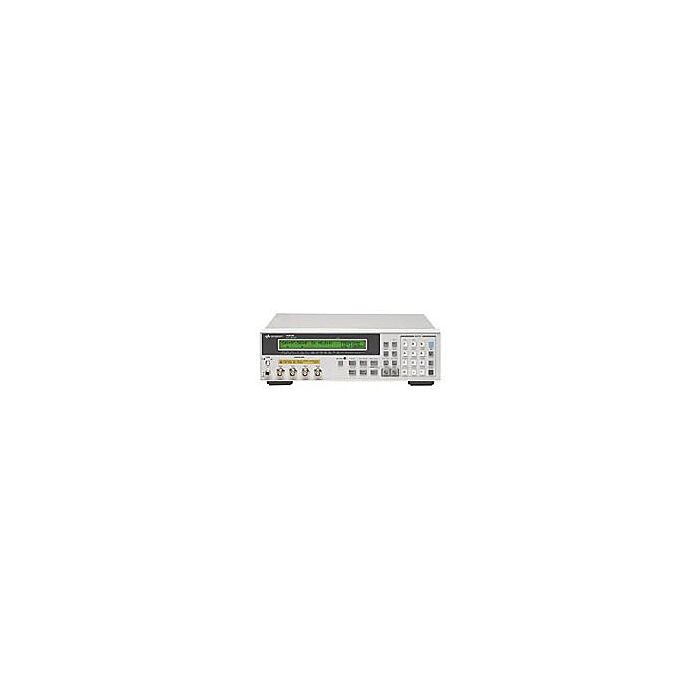

Keysight 4263B Highlights
The 4263B LCR meter is Keysight Technologies' most cost-effective low-end LCR meter, designed for both component evaluation on the production line and fundamental impedance testing for bentch top application.
Effective December 1, 2010, the 4263B's base price has been reduced. Also, the option 001 (transformer parameter measurement) and 002 (20 kHz test frequency) are available without charge. Please order the 4263B with option 001 and 002.
- AC Test signal level: 20 mV to 1 Vrms in 5 mV step
- Internal DC bias (1.5 V, 2 V)
- Test signal level monitor function
- High-speed contact check
- Wide capacitance test range
- OPEN/SHORT/LOAD correction
- Up to 4 m cable extension
- Wide fixture availability
- 0.1% basic accuracy
- High-speed measurement: 25 ms
- DC and six frequencies (100/120/1 k/10 k/20 k/100 kHz)
- Measurement parameters: Z, Y, Theta, R, X, G, B, C, L, D, Q, Rdc, N, M
- Add N/M/DCR Measurement Function
