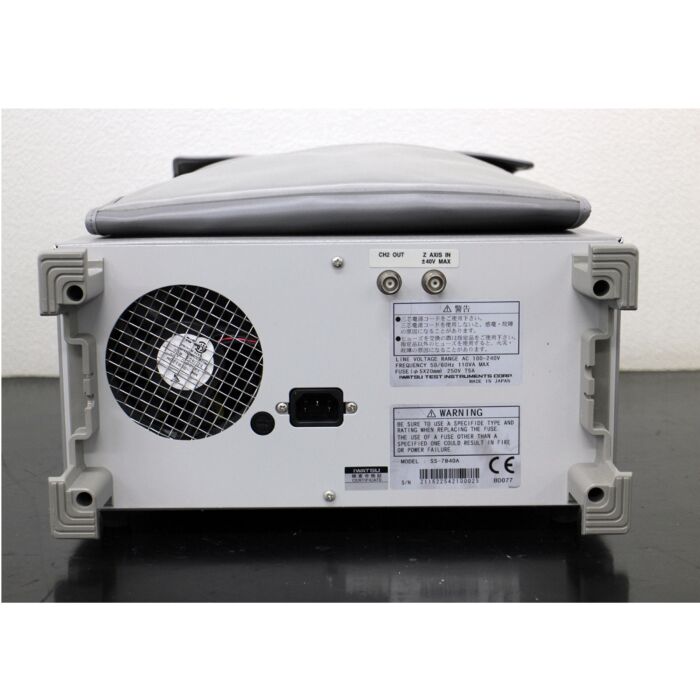

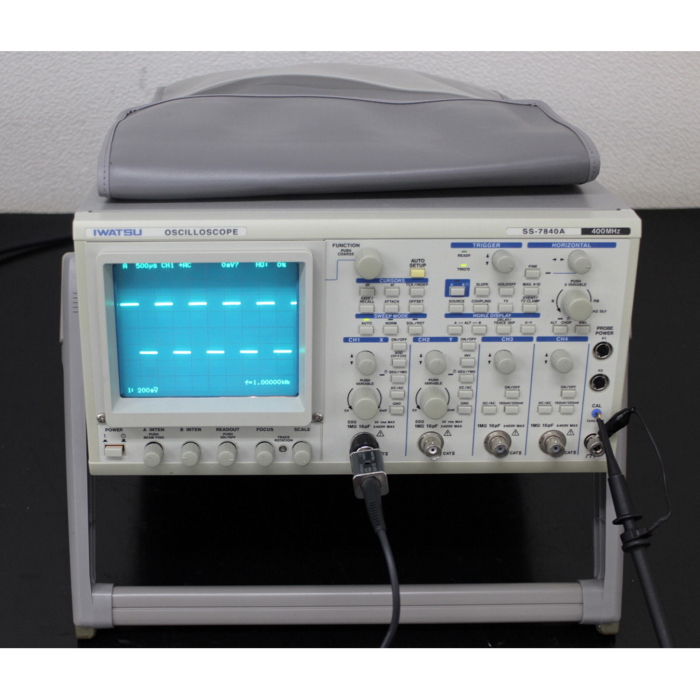

Iwatsu SS-7840 FOR RENT

Analog Oscilloscope, 400MHz 4 channel, Color CRT

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: SS-7840-RENT2

Mfg Part #: SS-7840

Call for Price


1 In stock

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

Overview :

DC to 470MHz wideband (SS-7840H): The highest bandwidth is guaranteed at the probe tip for all 4 channels -DC - 400MHz: SS-7840 -DC - 300MHz: SS-7830 -DC - 250MHz: SS-7825 (No longer sold) 2mV/div (CH1, CH2)(SS-7840/7830/7825) 5-digit frequency counter Iwatsu Test Instruments Corporation-developed bright, sharp CRT -For the most important part of the analog oscilloscope -the CRT- Iwatsu Test Instruments Corporation uses its own original CRT. Based on our more than 40 years experience in CRT design, this advanced model features superlative brightness and sharpness that even allows you to easily observe signals with slow repetition and a high-speed rise. DC offset function (CH1, CH2) -This function is convenient when you need to observe a signal with a very small amplitude superimposed over a signal with a large amplitude. It's especially useful when observing high-frequency noise superimposed over video signals or the ripple of a high-voltage DC power supply. DC offset equivalent to +-500 div max. can be applied. TV / HDTV triggering -Field (EVEN, ODD, BOTH) and line selection is possible for NTSC, PAL (SECAM), HDTV. TV clamp (Pedestal clamp) function (CH1, CH2) -A function that displays the backporch level of a composite signal fixed to ground level can be used to conveniently monitor signals that deviate from the average voltage. Event trigger High-speed auto setup function
