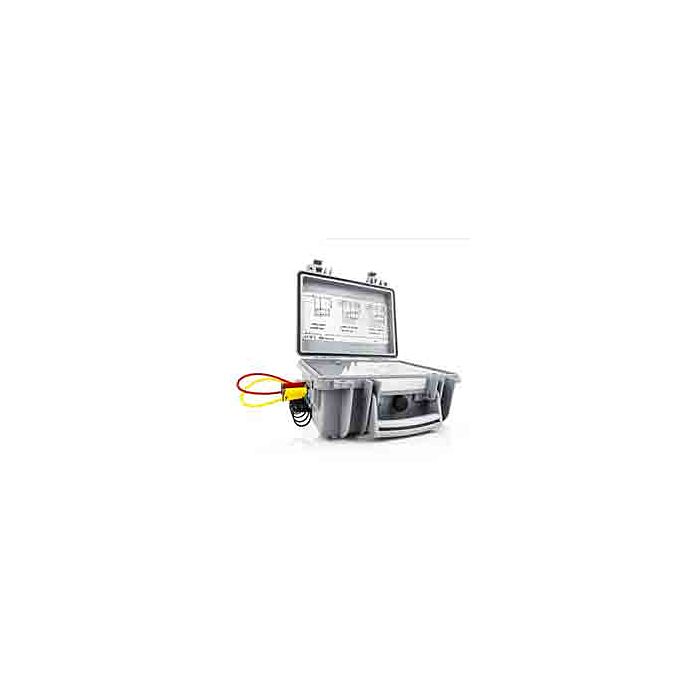

HT Instruments PQA820

Waterproof, self-powered 3- phase power quality analyser

Order #: HV000820

Mfg Part #: HV000820

$2,750.00 USD



Usually ships in 7-10 days

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All HT Instruments Products

Compare Products in this Series

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
HT Instruments PQA820TI HT Instruments PQA820TI

PQA820 with iPad mini

Order #: HV0820TI

Usually ships in 7-10 days

$2,795.00 USD
Add Items to Cart

HT Instruments PQA823 HT Instruments PQA823

Power quality analyser CAT IV with 4 CTs HTFLEX33

Order #: HV000823

Usually ships in 7-10 days

$4,295.00 USD
Add Items to Cart

HT Instruments PQA823 HT Instruments PQA823

Power quality analyser CAT IV with 4 CTs HTFLEX33 and A0056

Order #: HV000823-0203

Usually ships in 7-10 days

$4,295.00 USD
Add Items to Cart

HT Instruments PQA824 HT Instruments PQA824

Power quality analyser CAT IV with 4 CTs HTFLEX33

Order #: HV000824

Usually ships in 7-10 days

$4,995.00 USD
Add Items to Cart

HT Instruments PQA824 HT Instruments PQA824

Power quality analyser CAT IV with 4 CTs HTFLEX33 and A0056

Order #: HV000824-0203

Usually ships in 7-10 days

$4,995.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

  • DC voltage
  • TRMS voltage with 4 inputs for line(s) and neutral (if any)
  • DC current
  • TRMS current with 4 inputs for line(s) and neutral (if any)
  • DC power
  • Active, reactive and apparent power
  • Active, reactive and apparent energy
  • Power factor and cos-phi
  • Frequency

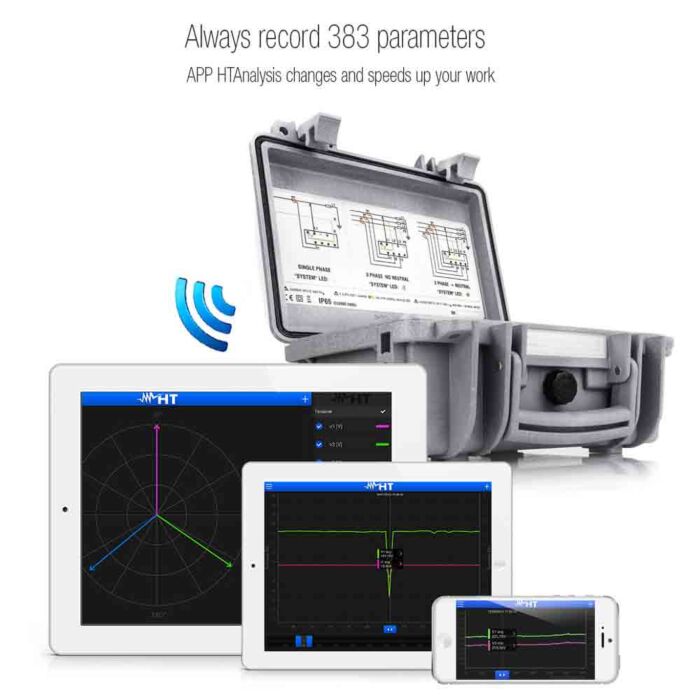

  • Up to 383 parameters to be recorded at once
  • Integration period selectable from 5 seconds to 60 minutes
  • Voltage and current harmonic analysis up to the 49th order
  • Voltage anomalies (sags, swells) with 10ms resolution
  • Numerical data analysis (DMM function)
  • Graphical display of voltage and current (scope)
  • Harmonic histogram
  • Vectorial diagram of voltages and currents
  • Voltage unbalance
  • Predefined recording settings

Each Unit Includes

  • Built-in memory for data logging
  • Wi-Fi and USB interfaces
  • Android/iOS/Windows software
  • Rechargeable Li-Ion battery with built-in power supply
  • Waterproof IP65 hard carrying case
