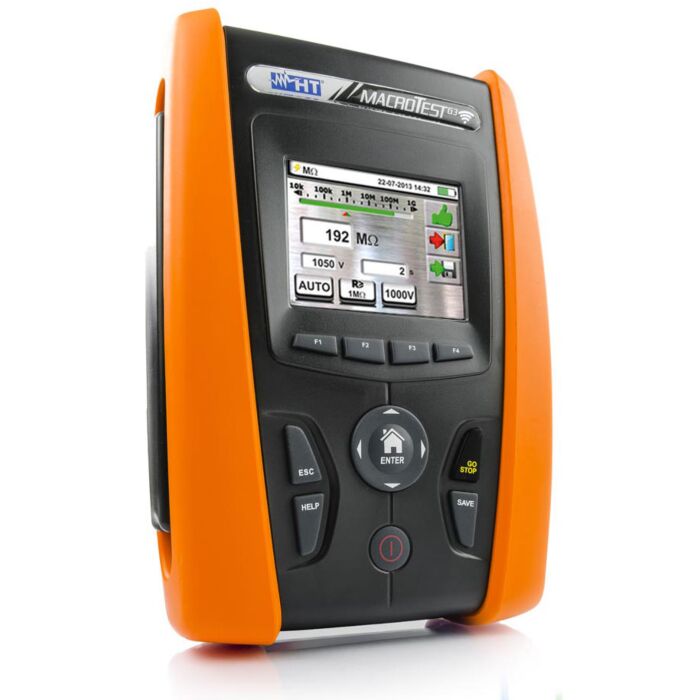

HT Instruments MACROTESTG3

Multifunction tester according to IEC 61557

Order #: HV005036

Mfg Part #: HV005036

$2,095.00 USD



Usually ships in 7-10 days

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All HT Instruments Products

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
HT Instruments MACROTEST G1 HT Instruments MACROTEST G1

Ground resistance and bonding Continuity tester

Order #: HV005037

Usually ships in 7-10 days

$1,695.00 USD
Add Items to Cart Add to Quote

HT Instruments MACROTEST G2 HT Instruments MACROTEST G2

Insulation resistance, ground resistance & bonding continuity

Order #: HV005038

Usually ships in 7-10 days

$1,995.00 USD
Add Items to Cart

HT Instruments KITMACROTEST G1 HT Instruments KITMACROTEST G1

MacrotestG1 + VA504 + T2100

Order #: HA0000G1

Usually ships in 7-10 days

$2,995.00 USD
Add Items to Cart Add to Quote

HT Instruments KITMACROTEST G2 HT Instruments KITMACROTEST G2

MacrotestG2 + VA504 + T2100

Order #: HA0000G2

Usually ships in 7-10 days

$3,295.00 USD
Add Items to Cart

Overview :

Product Highlights

  • Continuity of protection conductors with 200mA
  • Insulation resistance with 50, 100, 250, 500,1000V DC
  • Type A, AC, and B general, selective, and delayed RCDs up to 1000mA
  • Test on earth leakage relay RCDs (with RCDX10 optional accessory)
  • Line/fault impedance with prospective short circuit current calculation
  • High resolution line/fault impedance (with IMP57 optional accessory)
  • Curve B, C, D, and K MCBs and type gG and aM fuses
  • Selection of length, type, and insulation of the cable under test
  • Selection of tripping time of the protection device under test
  • Earth resistance and soil resistivity with auxiliary rods
  • Earth ground resistance (with T2100 optional accessory)
  • Non-trip earth loop impedance
  • Phase sequence indication
  • Voltage drop on main power lines
  • Power Analysis, Harmonic analysis up to 25th
  • Leakage current by means of the external transducer HT96U (optional)
  • Environmental parameters (C/F, HR%, Lux) by means of optional probes

Each Unit Includes

  • TFT display with touch-screen
  • Help on-line
  • Internal memory
  • USB interface to connect to the PC
  • Built-in WiFi interface to connect to iOS and Android devices
  • Rechargeable NiMH batteries (external battery charger)
