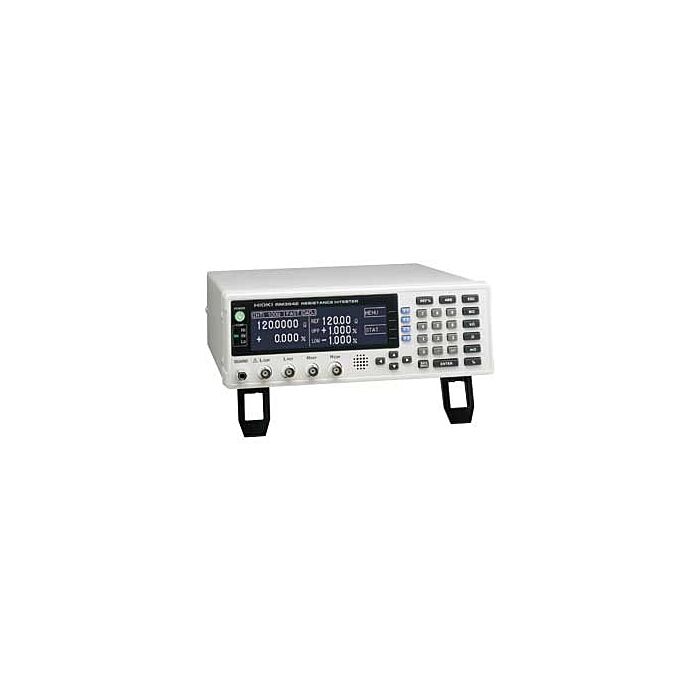

Hioki RM3542-01
Resistance HiTester with GPIB

Order #: RM3542-01

Mfg #: RM3542-01

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,470.00

Hioki RM3542-01

Resistance HiTester with GPIB

Order #: RM3542-01

Mfg #: RM3542-01

$3,470.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Puerto Rico only.

Product Highlights

  • High speed and accuracy maximize productivity in automated systems
  • Multiple checking functions ensure proper contact for reliable measurements
  • Low-power resistance mode measures chip inductors and EMC suppression components
  • Supports sample inspections during the manufacturing process
  • Display Monochrome graphic LCD 240 × 64 dot, white LED backlight
  • Measurement accuracy [with SLOW mode, at 100 mO range] ±0.015 % rdg. ±0.002 % f.s. [with SLOW mode, at 1000 O range] ±0.006 % rdg. ±0.001 % f.s. (the best case)
  • Testing current [at 100 mO range] 100 mA DC to [at 100 MO range] 100 nA DC
  • Open-terminal voltage 20 V DC max.
  • Sampling rate FAST, MEDIUM, SLOW, 3 settings
  • Measurement times [at 100 O /1000 O ranges, with Low Power OFF] FAST: 0.9 ms, MED: 3.6 ms, SLOW: 17 ms (minimum time)
  • Integration time 0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz
  • Note: PLC = one power line cycle (mains wave-form period)
  • Other functions Comparator (compare setting value with measurement value), Delay (set to allow for mechanical delay of trigger input and probing, or set to allow for measurement object response), OVC (offset voltage compensation), Measurement fault detection, Probe short-circuit detection, Improve contact, Auto-memory, Statistical calculations, Settings monitor (when using two instruments, a difference in settings causes warning notification), Retry, Trigger function. etc,.
  • Interface RS-232C, Printer, GP-IB (Model RM3542-01)
  • External I/O Trigger, Hold input, Comparator output, Settings monitor terminal
  • Power supply, consumption 100 to 240 V AC, 50/60 Hz, 30 VA max.
  • Dimensions, mass 260 mm (10.24 in) W × 88 mm (3.46 in) H × 300 mm (11.81 in) D, 2.9 kg (102.3 oz)

Each Unit Includes

  • Power cord
  • EXT I/O male connector
  • Operation manual
  • Operation guide
