Hioki IR4018-20

Analog Mega-ohm Meter

Order #: IR4018-20

Mfg Part #: IR4018-20

$325.00 USD

Usually ships in 7-10 days

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

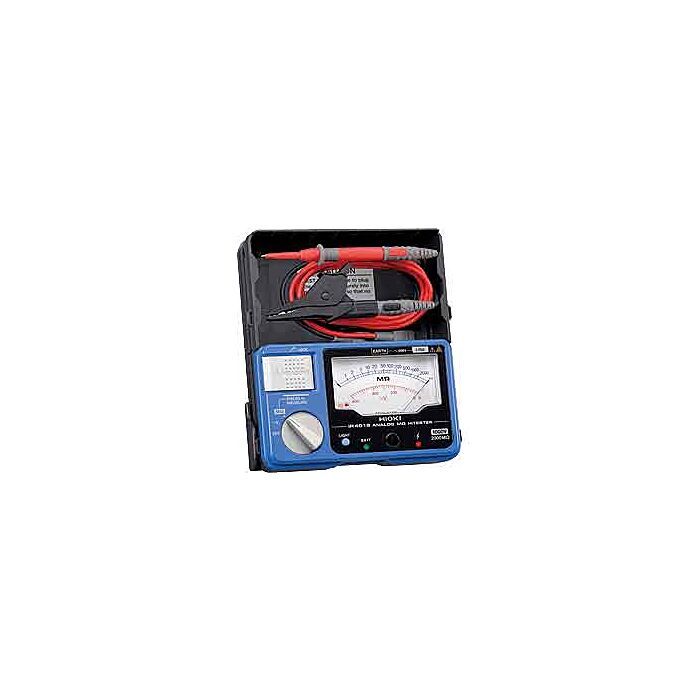

click on image to view gallery image(s)

View All Hioki Products

Overview :

Product Highlights

  • Single range testing voltage 1000 V, Insulation meter up to 2000 Mohms
  • Built tough to withstand a 1-meter drop onto a concrete floor
  • Bright LED luminous scale
  • Check for live circuits and for the battery status
  • Hard case in a body, quick and easy storage without disconnecting the leads
  • Testing voltage 1000 V DC
  • Rated resistance 2000 Mohm
  • Accuracy 1st effective measuring range ±5 % of indicated valu 2 to 1000 Mohm
  • Lower limit resistance 1 Mohm (measurement resistance value to be maintained testing voltage)
  • Overload protection 1200 V AC (10 sec.)
  • AC voltage measurement 0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 500 kohm or more input resistance
  • Other functions Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge
  • Power supply LR6 (AA) alkaline batteries ×4, Continuous use: 15 hours (at 500 V range, no load)
  • Dimensions, mass 159 mm (6.26 in)W × 177 mm (6.97 in)H × 53 mm (2.09 in)D, 610 g (21.5 oz), (including battery, not including test lead)

Each Unit Includes

  • Test Lead
  • Instruction Manual
  • 4 LR6 (AA) alkaline batteries
  • Shoulder strap
