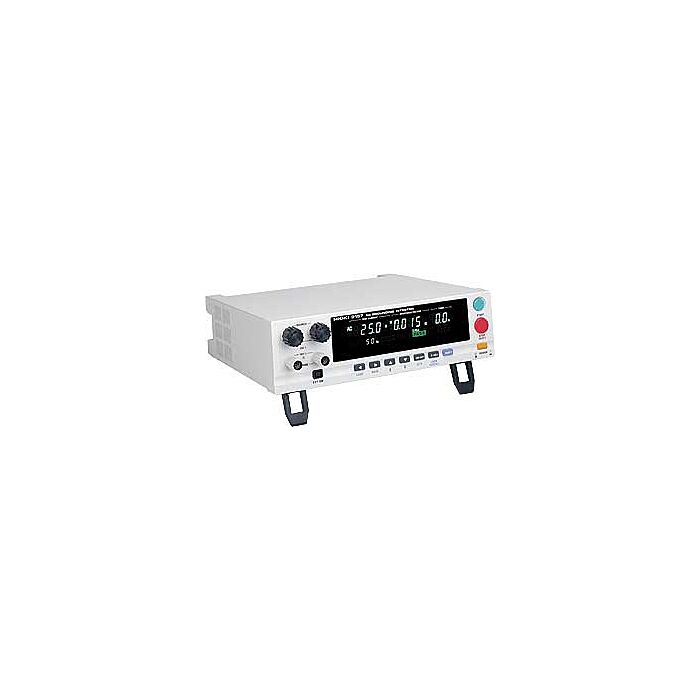

Hioki 3157-01

AC Grounding HiTester

Order #: 3157-01

Mfg Part #: 3157-01

$3,795.00 USD



Usually ships in 7-10 days

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Hioki Products

Overview :

Product Highlights

  • Measurement items Low resistance, AC 4-terminal method
  • Generator section Current generator principle: PWM constant current control, Current setting range: 3.0 A to 31.0 A (0.1 A resolution), into 0.1 Ohm load, Maximum output power: 130 VA*1 (at output terminals)
  • *1 Subject to derating according to ambient temperature (80 % at 40 °C)
  • Frequency: 50 Hz or 60 Hz sine wave, Soft start function: Apply current only after checking load connection
  • Monitor section Resistance measurement: 0 to 1.800 Ohm (0.001 Ohm resolution), Accuracy: ±2 % rdg. ±4 dgt. (after zero-adjust), Current monitoring range: 0 to 35.0 A AC (0.1 A resolution), Monitoring cycle: 2 times/second
  • Other functions Timer setting: Counts down time after start until preset time, or shows elapsed time after start, Setting range: 0.5 to 999 second, Comparator: Pass/Fail evaluation using preset upper/lower limit, I/O output, Memory function: max. 20 settings (with save/load)
  • Display Fluorescent tube digital display
  • Power supply 100 to 120 V, 200 to 240 V AC (auto-switching), 50/60 Hz
  • Dimensions, mass 320 mm(12.60 in)W × 90 mm(3.54 in)H × 263 mm(10.35 in)D, 7 kg (246.9 oz)

Each Unit Includes

  • Power cord
  • Spare fuse
  • Shorting bar(2)
